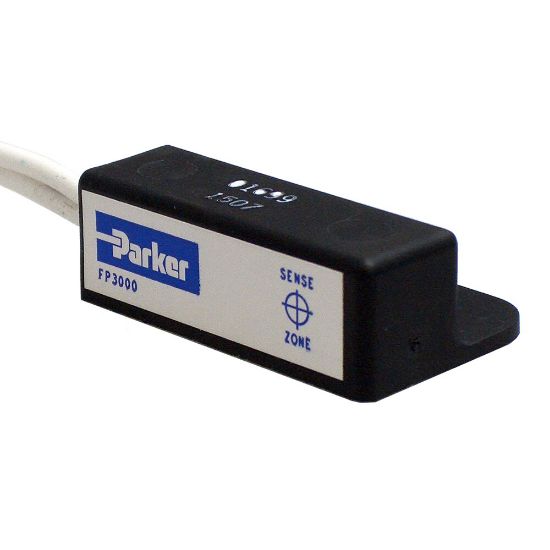

01699ECD - Ferrous Proximity Sensor - FP

Parker's Ferrous Proximity Sensors use back-biased reed switch technology non-contacting technology to detect the presence of ferrous targets. Because they are non-contacting with no moving external components they are well suited for many applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	2 Limited Stock

SKU 01699ECD

$138.45/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Switch Type	NO
Sensing Surface	Site A	Sense Air Gap Min (mm)	10.2
Mounting Hole Diameter	6.0 mm (x2)	Maximum Switching Voltage	100
Release Air Gap	17.8	Sensor Type	Proximity
Ingress Protection Rating	67	Model Number	FP3000
Division	Electronic Motion and Controls Division	Sense Air Gap	11.4
Maximum Switching Current	0.5	Electrical Connection	DTM04-2P
Housing Material	Glass-filled Nylon	Contact Rating	10
