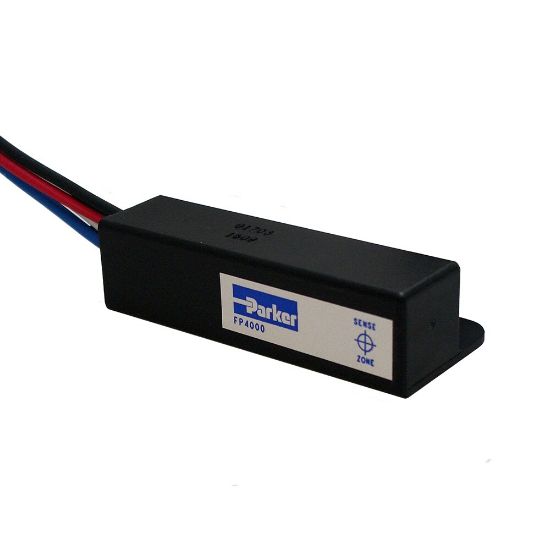

01703ECD - Ferrous Proximity Sensor - FP

Parker's Ferrous Proximity Sensors use back-biased reed switch technology non-contacting technology to detect the presence of ferrous targets. Because they are non-contacting with no moving external components they are well suited for many applications.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 01703ECD

$101.18/each

Products specifications

Attribute name	Attribute value
UOM	EA	Sense Air Gap Min (mm)	6.4
Sensing Surface	Site A	Switch Type	NO and NC
Division	Electronic Motion and Controls Division	Model Number	FP4000
Sense Air Gap	6.4	Electrical Connection	DTM04-4P
Maximum Switching Current	5	Housing Material	Glass-filled Nylon
Mounting Hole Diameter	6.4 mm (x3)	Contact Rating	45
Maximum Switching Voltage	12	Sensor Type	Proximity
Release Air Gap	7.2	Ingress Protection Rating	67
