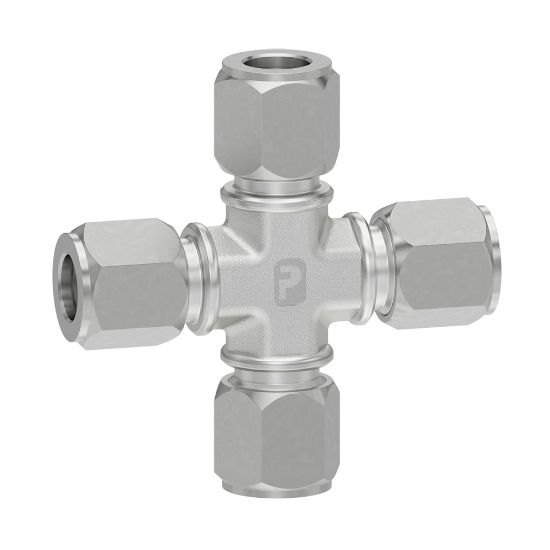

6 KBU-SS - Ferulok 24° Flareless Fittings

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	Backordered

SKU 6 KBU-SS

$174.85/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Stainless Steel
Connection 3 Thread Size (inch)	na	Shape	Cross
Connection 2 Thread Size (inch)	na	Connection 1 Style	Male Flareless Bite Type
Connection 2 Style	Male Flareless Bite Type	O-ring	na
Connection 3 Style	Male Flareless Bite Type	Connection 2 Tube O.D. (inch)	3/8
Connection Style	Union Cross	Connection 1 Tube O.D. (inch)	3/8
Connection 3 Tube O.D. (inch)	3/8	Maximum Dynamic Pressure	5000 psi
Connection 4 Size	Male Flareless Bite Type	Specifications Met	SAE J514
Connection 4 Tube Outside Diameter	3/8 inch	Body Material	Stainless Steel
Division	Tube Fittings Division	Connection Type	Flareless Bite Type
