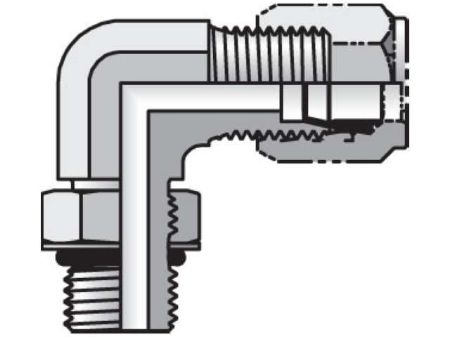

Ferulok 90° Elbow C5BU
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Ferulok fitting design utilizes a combination of proven European features, coupled with many innovative product improvements instituted by Parker Hannifin. On assembly, the ferrule “bites” into the outer surface of the tube with sufficient strength to hold the tube against pressure, without significant distortion of the inside tube diameter. Ferulok fittings are especially suitable for use with tube wall thickness ranging from medium to extra heavy.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Material | End 2 | O-Ring/Seal Material | Pkg Qty | Pkg Qty/UOM | End 1 | Parker Group | Parker Division | Inch/Metric | End 1 Type | End 1 | Material | Configuration Type | O-Ring/Seal Material | Series | Configuration Sub-Type | Tube Fitting/Adapter Type | End 2 | End 2 Type | Trade Name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 C5BU-SS FKM | Backordered | Backordered | $199.76/each | EA | EA | Stainless Steel | 7/8-14 UN/UNF-2A | Fluorocarbon | 5 | 5 EA | 5/8 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 5/8 Inch | Stainless Steel | 90° Elbow | Fluorocarbon | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 7/8-14 UN/UNF-2A | UN/UNF-2A | Ferulok | |
| 10 C5OU-S | Backordered | Backordered | $29.27/each | EA | EA | Steel | 7/8-14 UN/UNF-2A | 10 | 10 EA | 5/8 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 5/8 Inch | Steel | 90° Elbow | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 7/8-14 UN/UNF-2A | UN/UNF-2A | Ferulok | |||
| 10 C5U-SS | Backordered | Backordered | $152.54/each | EA | EA | Stainless Steel | 7/8-14 UN/UNF-2A | 5 | 5 EA | 5/8 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 5/8 Inch | Stainless Steel | 90° Elbow | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 7/8-14 UN/UNF-2A | UN/UNF-2A | Ferulok | |||
| 12 C5U-S | Backordered | Backordered | $41.39/each | EA | EA | Steel | 1 1/16-12 UN/UNF-2A | 10 | 10 EA | 3/4 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 3/4 Inch | Steel | 90° Elbow | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | Ferulok | |||
| 12 C5U-SS | Backordered | Backordered | $141.88/each | EA | EA | Stainless Steel | 1 1/16-12 UN/UNF-2A | 5 | 5 EA | 3/4 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 3/4 Inch | Stainless Steel | 90° Elbow | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | Ferulok | |||
| 16 C5U-SS | Backordered | Backordered | $243.13/each | EA | EA | Stainless Steel | 1 5/16-12 UN/UNF-2A | 5 | 5 EA | 1 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 1 Inch | Stainless Steel | 90° Elbow | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 1 5/16-12 UN/UNF-2A | UN/UNF-2A | Ferulok | |||
| 20 C5OU-S | Backordered | Backordered | $128.33/each | EA | EA | Steel | 1 5/8-12 UN/UNF-2A | 4 | 4 EA | 1 1/4 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 1 1/4 Inch | Steel | 90° Elbow | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 1 5/8-12 UN/UNF-2A | UN/UNF-2A | Ferulok | |||
| 24 C5U-S | Backordered | Backordered | $124.90/each | EA | EA | Steel | 1 7/8-12 UN/UNF-2A | 3 | 3 EA | 1 1/2 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 1 1/2 Inch | Steel | 90° Elbow | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 1 7/8-12 UN/UNF-2A | UN/UNF-2A | Ferulok | |||
| 4 C5OU-S | Backordered | Backordered | $16.27/each | EA | EA | Steel | 7/16-20 UN/UNF-2A | 50 | 50 EA | 1/4 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 1/4 Inch | Steel | 90° Elbow | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 7/16-20 UN/UNF-2A | UN/UNF-2A | Ferulok | |||
| 4 C5U-S | Backordered | Backordered | $14.70/each | EA | EA | Steel | 7/16-20 UN/UNF-2A | 50 | 50 EA | 1/4 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 1/4 Inch | Steel | 90° Elbow | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 7/16-20 UN/UNF-2A | UN/UNF-2A | Ferulok | |||
| 4 C5U-SS | Backordered | Backordered | $70.53/each | EA | EA | Stainless Steel | 7/16-20 UN/UNF-2A | 10 | 10 EA | 1/4 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 1/4 Inch | Stainless Steel | 90° Elbow | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 7/16-20 UN/UNF-2A | UN/UNF-2A | Ferulok | |||
| 6 C5OU-S | Backordered | Backordered | $19.35/each | EA | EA | Steel | 9/16-18 UN/UNF-2A | 50 | 50 EA | 3/8 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 3/8 Inch | Steel | 90° Elbow | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 9/16-18 UN/UNF-2A | UN/UNF-2A | Ferulok | |||
| 6 C5U-S | Backordered | Backordered | $19.63/each | EA | EA | Steel | 9/16-18 UN/UNF-2A | 50 | 50 EA | 3/8 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 3/8 Inch | Steel | 90° Elbow | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 9/16-18 UN/UNF-2A | UN/UNF-2A | Ferulok | |||
| 6-8 C5U-S | Backordered | Backordered | $67.98/each | EA | EA | Steel | 3/4-16 UN/UNF-2A | 20 | 20 EA | 3/8 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 3/8 Inch | Steel | 90° Elbow | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 3/4-16 UN/UNF-2A | UN/UNF-2A | Ferulok | |||
| 8 C5OU-S | Backordered | Backordered | $22.14/each | EA | EA | Steel | 3/4-16 UN/UNF-2A | 20 | 20 EA | 1/2 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 1/2 Inch | Steel | 90° Elbow | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 3/4-16 UN/UNF-2A | UN/UNF-2A | Ferulok | |||
| 8 C5OU-S FKM | Backordered | Backordered | $26.57/each | EA | EA | Steel | 3/4-16 UN/UNF-2A | Fluorocarbon | 20 | 20 EA | 1/2 Inch | Fluid Connector | Tube Fitting | Inch | Inch | 1/2 Inch | Steel | 90° Elbow | Fluorocarbon | Ferulok | Straight Thread Elbow Flareless / SAE-ORB | Bite Type, Ferulok Flareless | 3/4-16 UN/UNF-2A | UN/UNF-2A | Ferulok |
