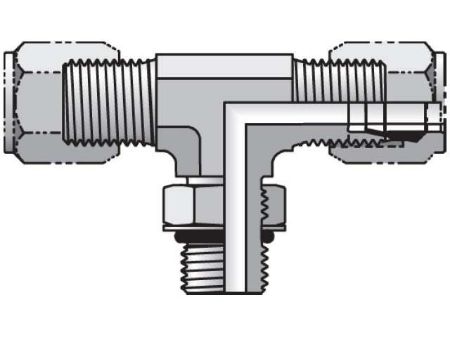

Ferulok Tee S5BU
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Ferulok fitting design utilizes a combination of proven European features, coupled with many innovative product improvements instituted by Parker Hannifin. On assembly, the ferrule “bites” into the outer surface of the tube with sufficient strength to hold the tube against pressure, without significant distortion of the inside tube diameter. Ferulok fittings are especially suitable for use with tube wall thickness ranging from medium to extra heavy.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | End 1 | End 3 | Material | End 2 | O-Ring/Seal Material | Pkg Qty/UOM | Pkg Qty | Parker Group | Parker Division | Inch/Metric | End 1 | End 1 Type | Material | Configuration Type | End 2 Type | O-Ring/Seal Material | Series | Tube Fitting/Adapter Type | Trade Name | End 3 Type | End 2 | Configuration Sub-Type | End 3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 S5BU-SS FKM | Backordered | Backordered | $176.03/each | EA | EA | 3/8 Inch | 9/16-18 UN/UNF-2A | Stainless Steel | 3/8 Inch | Fluorocarbon | 10 EA | 10 | Fluid Connector | Tube Fitting | Inch | 3/8 Inch | Inch | Stainless Steel | Tee | Inch | Fluorocarbon | Ferulok | Bite Type, Ferulok Flareless | Ferulok | UN/UNF-2A | 3/8 Inch | Straight Thread Branch Tee Flareless / SAE-ORB | 9/16-18 UN/UNF-2A | |
| 6 S5OU-S | Backordered | Backordered | $25.41/each | EA | EA | 3/8 Inch | 9/16-18 UN/UNF-2A | Steel | 3/8 Inch | 10 EA | 10 | Fluid Connector | Tube Fitting | Inch | 3/8 Inch | Inch | Steel | Tee | Inch | Ferulok | Bite Type, Ferulok Flareless | Ferulok | UN/UNF-2A | 3/8 Inch | Straight Thread Branch Tee Flareless / SAE-ORB | 9/16-18 UN/UNF-2A | |||
| 6 S5U-S | Backordered | Backordered | $25.58/each | EA | EA | 3/8 Inch | 9/16-18 UN/UNF-2A | Steel | 3/8 Inch | 10 EA | 10 | Fluid Connector | Tube Fitting | Inch | 3/8 Inch | Inch | Steel | Tee | Inch | Ferulok | Bite Type, Ferulok Flareless | Ferulok | UN/UNF-2A | 3/8 Inch | Straight Thread Branch Tee Flareless / SAE-ORB | 9/16-18 UN/UNF-2A | |||
| 8 S5OU-S | Backordered | Backordered | $35.21/each | EA | EA | 1/2 Inch | 3/4-16 UN/UNF-2A | Steel | 1/2 Inch | 5 EA | 5 | Fluid Connector | Tube Fitting | Inch | 1/2 Inch | Inch | Steel | Tee | Inch | Ferulok | Bite Type, Ferulok Flareless | Ferulok | UN/UNF-2A | 1/2 Inch | Straight Thread Branch Tee Flareless / SAE-ORB | 3/4-16 UN/UNF-2A | |||
| 8 S5OU-S FKM | Backordered | Backordered | $42.26/each | EA | EA | 1/2 Inch | 3/4-16 UN/UNF-2A | Steel | 1/2 Inch | Fluorocarbon | 5 EA | 5 | Fluid Connector | Tube Fitting | Inch | 1/2 Inch | Inch | Steel | Tee | Inch | Fluorocarbon | Ferulok | Bite Type, Ferulok Flareless | Ferulok | UN/UNF-2A | 1/2 Inch | Straight Thread Branch Tee Flareless / SAE-ORB | 3/4-16 UN/UNF-2A |
