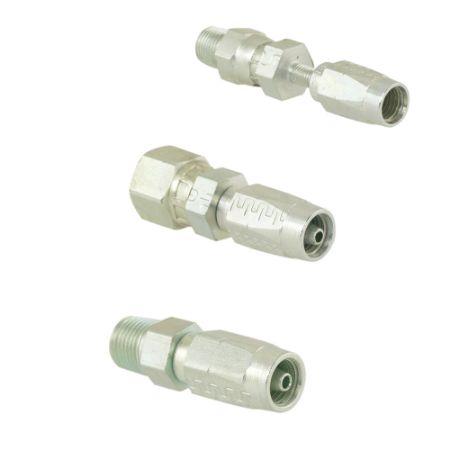

Field Attachable Fittings for HLB Hose – BU Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's BU Series fittings are qualified for use with thermoplastic HLB Lubrication hose, making them suitable for a wide range of applications, such as grease and lubrication lines, agriculture, construction, mobile equipment, and many more. BU Series are field-attachable, permanent, steel fittings that are able to withstand temperatures as high as 120°F. These fittings allow for minor movement to relieve stress and strain on the hose, but they are not recommended for continued or extensive swiveling. In addition, BU Series fittings are not recommended for use in CNG applications.

Markets:
• Industrial
• Agriculture
• Construction
• Mobile Equipment
• Transportation

Features/Benefits:
• Able to withstand temperatures as high as 120°F
• Allow for minor movement to relieve stress and strain on the hose

Applications:
• Grease and lubrication lines

Technical Specifications:
• Not intended for use on hose that has previously been in service

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Product Style	Port Connection	Hose I.D. (inch)	Length (inch)	Division	Port Size	Product Style	Dimensional Weight	Shape	Disclaimer	Connection Size	Hose Inside Diameter	Materials of Construction	Connection Type	Length
201BU-2-2	Backordered	118 in stock	$38.66/each	EA	Male NPTF Pipe - Rigid - Straight	1/8"	0.125"	1.5"	Parflex Division	1/8 inch	Male NPTF Pipe - Rigid - Straight	0.0321 lb	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	1/8"-27 inch Thread	0.125 inch	Steel	Pipe	1.5 inch
206BU-4-2	18 in stock	50 in stock	$60.82/each	EA	Female JIC 37°/SAE 45° Dual Flare - Swivel - Straight	1/4"	0.125"	1.77"	Parflex Division	1/4 inch	Female JIC 37°/SAE 45° Dual Flare - Swivel - Straight	0.0132 lb	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	7/16"-20 inch Thread	0.125 inch	Steel	37° Flare	1.77 inch
206BU-4-3	4 in stock	Backordered	POR	EA	Female JIC 37°/SAE 45° Dual Flare - Swivel - Straight	1/4"	0.188"	1.89"	Parflex Division	1/4	Female JIC 37°/SAE 45° Dual Flare - Swivel - Straight	0.0162	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	7/16"-20 inch Thread	0.188	Steel	37° Flare	1.89
213BU-2-2	49 in stock	5 in stock	$55.50/each	EA	Male NPTF Pipe - Swivel - Straight	1/8"	0.125"	2.07"	Parflex Division	1/8 inch	Crimp	0.0106 lb	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	1/8"-27 inch Thread	0.125 inch	Steel	Pipe	2.07 inch
