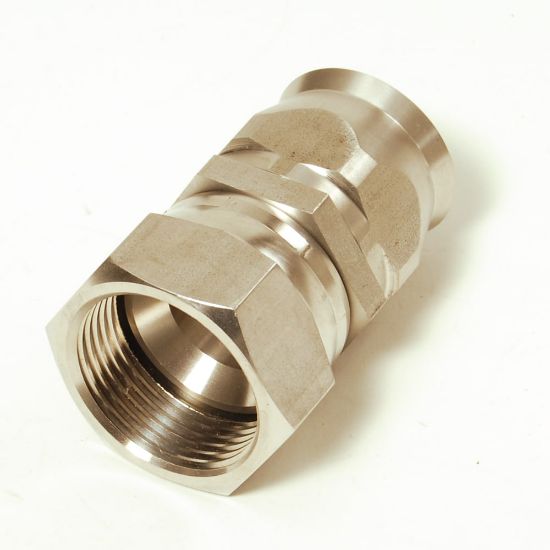

20690-12-12C - Field Attachable Fittings for PTFE Hose - 90 Series

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	1 Limited Stock

SKU 20690-12-12C

$363.88/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Female JIC 37° - Swivel - Straight
Hose I.D. (inch)	0.625"	Connection 2 Size	1-1/16"-12
Length (inch)	2.33"	Technology	Fluid & Gas Handling
Product Type	Hose Fittings	Connection 2 Size	1-1/16"-12 inch Thread
Coating	Chromium 6 Free-plated	Connection Length	59 mm
Brand	Parker	Specifications Met	n/a
Tube Outside Diameter	n/a	Hex Size 1	1-1/4 inch (see drawing legend J)
Hex Size	1-1/4 inch (see drawing legend H)	Connection 1 Size	-12 (Size)
Connection 2 Type	Female	Fitting Length	2.33 inch (see drawing legend A)
Maximum Operating Pressure	3000 psi (Dependent on hose)	Connection 1 Type	Hose
Body Material	Brass (Nipple and Ferrule)	Dimensional Weight	0.0529 lb
Product Series	90	Configuration	Hose to Port
Application	Pneumatics	Industry	Industrial
Division	Parflex Division	For Fluid Type	Gases
Division	Parflex Division	Shape	Straight
