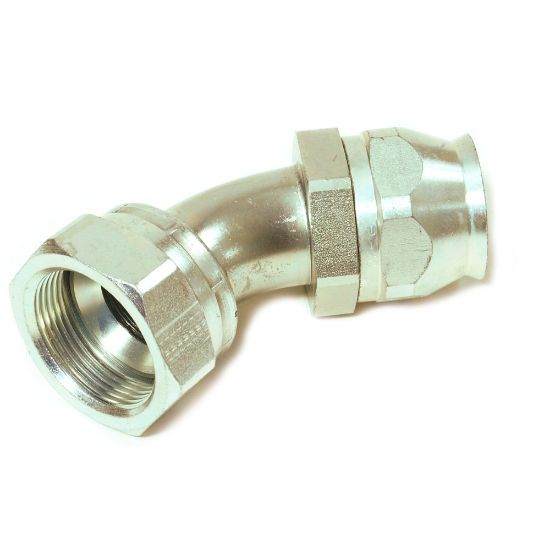

23790-20-20 - Field Attachable Fittings for PTFE Hose - 90 Series

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	Backordered

SKU 23790-20-20

$368.43/each

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	1"
Connection 2 Size	1-5/8"-12	Product Style	Female JIC 37° - Swivel - 45° Elbow - Short Drop
Length (inch)	3.7"	Industry	Transportation
Division	Parflex Division	Connection 2 Size	1-5/8"-12 inch Thread
Coating	Chromium 6 Free-plated	For Fluid Type	Pneumatic Media
Configuration	Hose to Port	Maximum Operating Pressure	3000 psi (Dependent on hose)
Connection 1 Type	Hose	Division	Parflex Division
Fitting Length	3.7 inch (see drawing legend A)	Shape	Elbow 45° Short Drop
Body Material	Steel	Hex Size 1	2 inch (see drawing legend J)
Tube Outside Diameter	n/a	Connection 2 Type	Female
Hex Size	2.0 inch (see drawing legend H)	Brand	Parker
Application	Semiconductor	Specifications Met	n/a
Product Series	90	Connection Length	3-1/16 inch Cut-off allowance (see drawing legend B)
Technology	Fluid & Gas Handling	Connection 1 Size	-20 (Size)
Product Type	Hose Fittings
