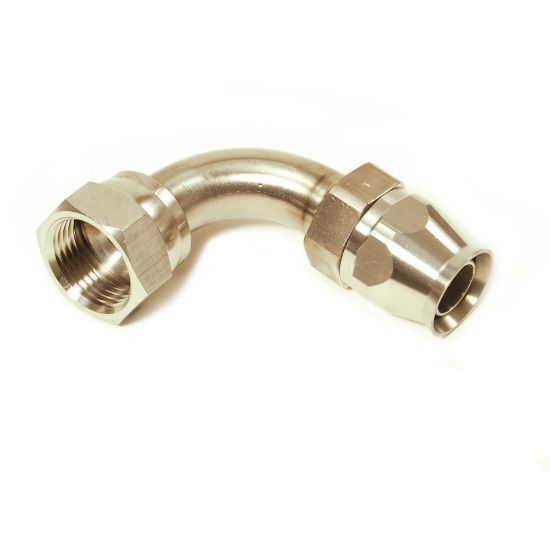

23990-20-20 - Field Attachable Fittings for PTFE Hose - 90 Series

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 23990-20-20

$190.46/each

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	1"
Connection 2 Size	1-5/8"-12	Product Style	Female JIC 37° - Swivel - 90° Elbow - Short Drop
Length (inch)	3.54"	Division	Parflex Division
Brand	Parker	Division	Parflex Division
Technology	Fluid & Gas Handling	Application	Pneumatics
Product Type	Hose Fittings	Product Series	90
Maximum Operating Pressure	3000 psi (Dependent on hose)	Body Material	Steel
Specifications Met	n/a	Industry	Healthcare & Life Sciences
Dimensional Weight	1.5476 lb	Shape	Elbow 90° Short Drop
Configuration	Hose to Port	For Fluid Type	Hydraulic Fluids
Connection 1 Size	1 inch Hose I.D.	Connection 1 Type	Hose
Connection 2 Size	1-5/8"-12 inch Thread	Connection 2 Type	Swivel
Hex Size	1-3/4 inch (see drawing legend H)	Coating	Chromium 6 Free-plated
Hex Size 1	2 inch (see drawing legend J)	Fitting Length	3.54 inch (see drawing legend A)
Connection Length	47 mm	Tube Outside Diameter	n/a
