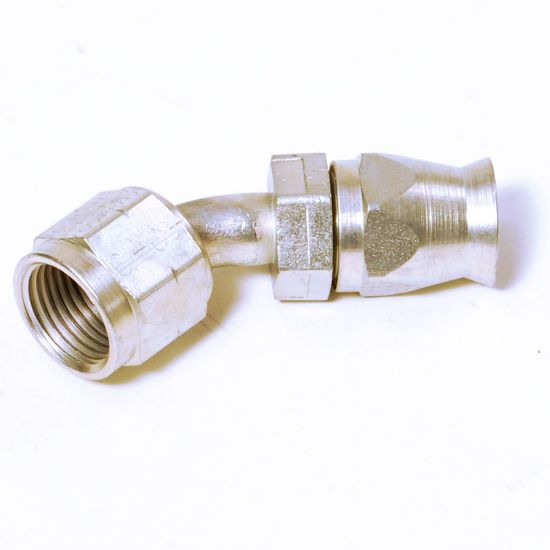

27990-12-12 - Field Attachable Fittings for PTFE Hose - 90 Series

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	3 in stock

SKU 27990-12-12

$85.61/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.625"
Length (inch)	2.51"	Connection 2 Size	1-1/16"-14
Product Style	Female SAE 45 / Swivel - 45° Elbow	Fitting Length	3.03 inch (see drawing legend A)
Division	Parflex Division	Shape	Elbow 90°
Body Material	Steel	Industry	Healthcare & Life Sciences
Division	Parflex Division	For Fluid Type	Gases
Specifications Met	n/a	Dimensional Weight	0.5886 lb
Product Series	90	Application	Tools & Equipment
Configuration	Hose to Port	Maximum Operating Pressure	3000 psi (Dependent on hose)
Connection 1 Type	Hose	Connection 1 Size	5/8 inch Hose I.D.
Hex Size	1-1/8 inch (see drawing legend H)	Tube Outside Diameter	n/a
Brand	Parker	Connection 2 Type	45° Flare SAE
Hex Size 1	1-1/4 inch (see drawing legend J)	Connection 2 Size	1-1/16"-14 inch Thread
Coating	Chromium 6 Free-plated	Technology	Fluid & Gas Handling
Connection Length	2 inch Cut-off allowance (see drawing legend B)	Product Type	Hose Fittings
