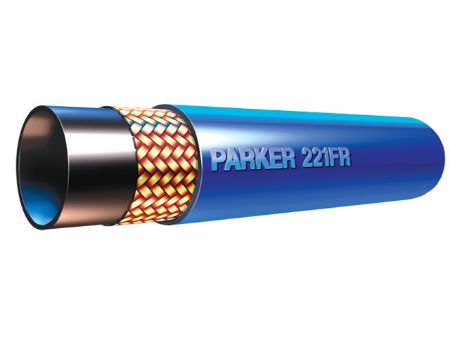

Fire Resistant Marine Fuel and Engine Hose 500 PSI - 221FR Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's 221FR hose is a transportation hose used for marine fuel and engines that provides fire resistance for gasoline and fuel systems. The 221FR hose is manufactured and tested to meet many agency approvals, such as: USCG, ABS, DNV, LR, and MSHA, for reliability. Sizes range from ¼” to 7/8” in diameter to fit the requirements of various markets.

Markets:

• Transportation

• Marine

Features/Benefits:

• One-wire braid hose design for flexibility

• Blue, fire resistant cover for safety

• Synthetic rubber inner tube for greater fluid compatibility

• 500 PSI working pressure in all sizes

Industry Standards:

• ISO 7840 / SAE J1527 A Class I / SAE J1942

Applications:

• Gasoline

• ethanol blends

• diesel fuels

• petroleum base hydraulic fluids

• lubricating oils

Compatible Fittings:

• 26 series fittings

• 20 series fittings

• 22 series fittings

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	UOM	Hose I.D. (size)	Division	Application	Media	Maximum Operating Pressure	Maximum Operating Temperature	Minimum Operating Temperature	Specifications Met	Weight	Outside Diameter	Cover Material	Inside Diameter	Compatible Fitting	Minimum Bend Radius	Vacuum Pressure Rating	Hose Inner Tube Material	Hose Reinforcement Material	Cover Color	Nominal Hose Inside Diameter	Material	Pkg Qty/UOM	Pkg Qty	Inner Diameter	Working Pressure	Mating Fitting Series	Parker Group	Inch/Metric	Parker Division	Inner Diameter	Inner Diameter Inch/mm	Material	Application	Hose Pressure Range	Mating End Fitting Series	Working Pressure Range	Series	Hose Category
221FR-10	Backordered	855 in stock	$37.62/foot	FT	FT	-10	Hose Products Division	Ethanol Blends	Fuels - Check fuel type with our catalogue chart.	3.5 MPa	100 °C	-20 °C	SAE J1942	0.39 lb/ft	23 mm	MSHA Approved	12.5 mm	20 Series	55 mm	508 mm-Hg	Synthetic Rubber	1 Braid of Steel Wire	Blue	12 mm	Rubber	1 FT	1	0.5 Inch	500 PSI (30 bar)	26, 20, 22	Fluid Connector	Inch	Hose Products	0.5 Inch	Inch	Rubber	Transportation	Low	26, 20, 22	500 to 999 PSI (34 to 69 bar	221FR	Fuel
221FR-12	Backordered	771 in stock	$45.88/foot	FT	FT	-12	Hose Products Division	Petroleum Base Hydraulic Fluids	Fuels - Check fuel type with our catalogue chart.	500 psi	100 °C	-20 °C	USCG H	0.41 lb/ft	1.080 inch	MSHA Approved	5/8 inch	22 Series	2-3/4 inch	508 mm-Hg	Synthetic Rubber	1 Braid of Steel Wire	Blue	16 mm	Rubber	1 FT	1	0.625 Inch	500 PSI (30 bar)	26, 20, 22	Fluid Connector	Inch	Hose Products	0.625 Inch	Inch	Rubber	Transportation	Low	26, 20, 22	500 to 999 PSI (34 to 69 bar	221FR	Fuel
221FR-16	Backordered	1215 in stock	$54.56/foot	FT	FT	-16	Hose Products Division	Diesel Fuels	Lubricants	500 psi	212 °F	-20 °C	HF	0.47 lb/ft	31 mm	MSHA Approved	22 mm	20 Series	3-1/2 inch	20 Inch-Hg	Synthetic Rubber	1 Braid of Steel Wire	Blue	22 mm	Rubber	1 FT	1	0.875 Inch	500 PSI (30 bar)	26, 20, 22	Fluid Connector	Inch	Hose Products	0.875 Inch	Inch	Rubber	Transportation	Low	26, 20, 22	500 to 999 PSI (34 to 69 bar	221FR	Fuel
221FR-5	Backordered	1013 in stock	$28.19/foot	FT	FT	-5	Hose Products Division	Diesel Fuels	Petroleum Hydraulic Fluids	500 psi	212 °F	-4 °F	ISO 7840	0.28 kg/m	15 mm	MSHA Approved	1/4 inch	26 Series	1 inch	24 Inch-Hg	Synthetic Rubber	1 Braid of Steel Wire	Blue	6 mm	Rubber	1 FT	1	0.25 Inch	500 PSI (30 bar)	26, 20, 22	Fluid Connector	Inch	Hose Products	0.25 Inch	Inch	Rubber	Transportation	Low	26, 20, 22	500 to 999 PSI (34 to 69 bar	221FR	Fuel
221FR-6	Backordered	1275 in stock	$30.65/foot	FT	FT	-6	Hose Products Division	Diesel Fuels	Petroleum Hydraulic Fluids	500 psi	212 °F	-4 °F	Lloyd RE	0.23 lb/ft	17 mm	Synthetic Rubber	8 mm	22 Series	30 mm	24 Inch-Hg	Synthetic Rubber	1 Braid of Steel Wire	Blue	8 mm	Rubber	1 FT	1	0.313 Inch	500 PSI (30 bar)	26, 20, 22	Fluid Connector	Inch	Hose Products	0.313 Inch	Inch	Rubber	Transportation	Low	26, 20, 22	500 to 999 PSI (34 to 69 bar	221FR	Fuel
221FR-8	Backordered	1281 in stock	$31.34/foot	FT	FT	-8	Hose Products Division	Gasoline	Fuels - Check fuel type with our catalogue chart.	500	212	-4	HF	0.28	0.770	Synthetic Rubber	13/32	26 Series	1-3/4	610	Synthetic Rubber	1 Braid of Steel Wire	Blue	10	Rubber	1 FT	1	0.406 Inch	500 PSI (30 bar)	26, 20, 22	Fluid Connector	Inch	Hose Products	0.406 Inch	Inch	Rubber	Transportation	Low	26, 20, 22	500 to 999 PSI (34 to 69 bar	221FR	Fuel
