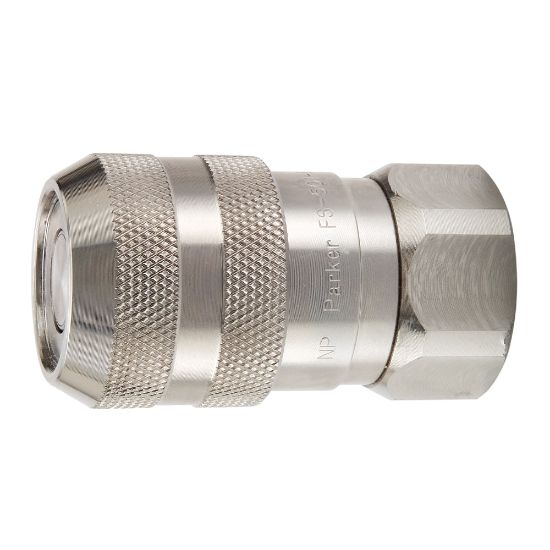

FS-251-4FB - Flat Face, Chemical Compatible Quick Couplings - FS Series

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU FS-251-4FB

$583.53/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Coupling Half	Female Coupler
Connection Type	Female BSPP	Minimum Operating Temperature	-15 °F
Hex Size	1 inch	Flow Rate	3 Gal/min
Application	Fluid Transfer	Product Type	Push to Connect
Division	Quick Coupling Division	Valve Type	Non-spill
Seal Material	Fluorocarbon	Maximum Operating Temperature	400 °F
Maximum Operating Pressure	2000 psi	Body Material	Stainless Steel 316
