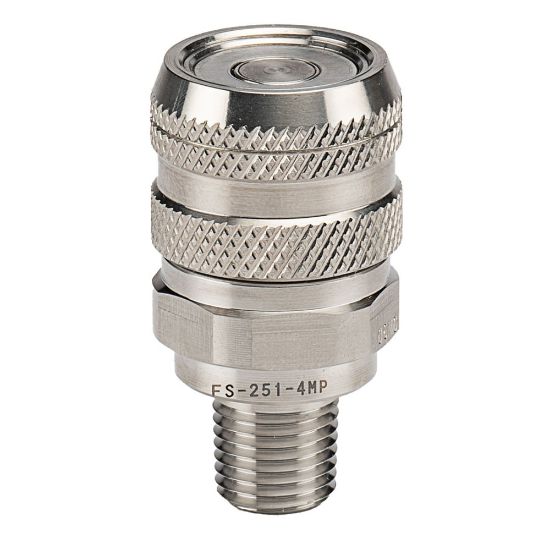

FS-251-4MP - Flat Face, Chemical Compatible Quick Couplings - FS Series

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	85 in stock

SKU FS-251-4MP

$421.67/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Connection Type	Male NPTF	Connection Thread Size (inch)	1/4 - 18
Coupling Half	Female Coupler	Maximum Operating Temperature	400 °F
Seal Material	Ethylene Propylene	Product Type	Push to Connect
Valve Type	Non-spill	Division	Quick Coupling Division
Flow Rate	3 Gal/min	Body Material	Stainless Steel 316
Maximum Operating Pressure	2000 psi	Hex Size	1 inch
Minimum Operating Temperature	-65 °F	Application	Fluid Transfer

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
