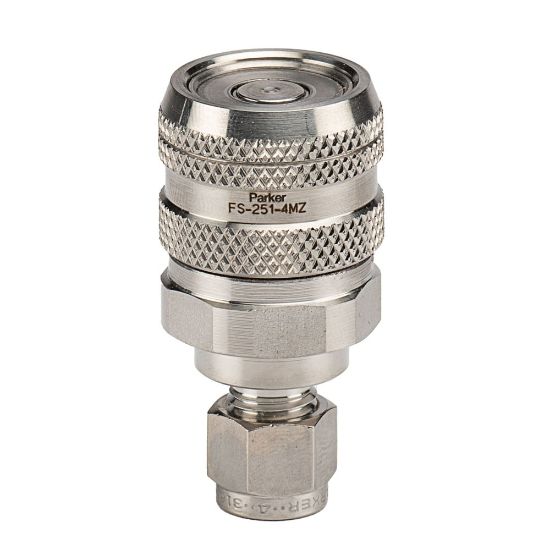

FS-251-4MZ - Flat Face, Chemical Compatible Quick Couplings - FS Series

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU FS-251-4MZ

$373.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Coupling Half	Female Coupler	Connection Type	Female CPI Flareless Tube Fitting
Connection Thread Size (inch)	-4	Division	Quick Coupling Division
Valve Type	Non-spill	Seal Material	Fluorocarbon
Maximum Operating Temperature	400 °F	Maximum Operating Pressure	2000 psi
Body Material	316 Stainless steel	Minimum Operating Temperature	-15 °F
Flow Rate	3 Gal/min	Application	Fluid and chemical transfer
Product Type	Push to connect

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
