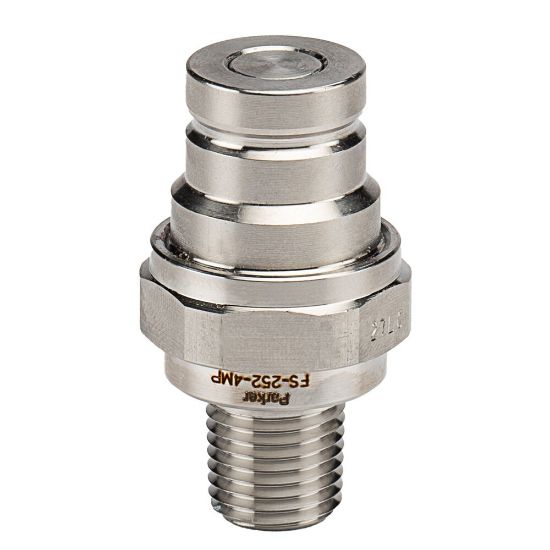

FS-252-4MP - Flat Face, Chemical Compatible Quick Couplings - FS Series

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	76 in stock

SKU FS-252-4MP

$217.93/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Male NPTF
Coupling Half	Male Nipple	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Product Type	Push to Connect
Valve Type	Non-spill	Maximum Operating Temperature	400 °F
Seal Material	Fluorocarbon	Division	Quick Coupling Division
Maximum Operating Pressure	2000 psi	Body Material	Stainless Steel 316
Hex Size	1 inch	Minimum Operating Temperature	-15 °F
Flow Rate	3 Gal/min	Application	Fluid Transfer

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
