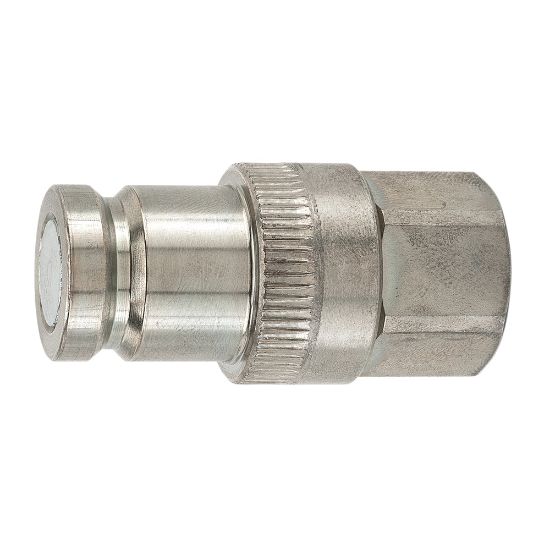

71-3N6-8F - Flat Face, High Pressure, Hydraulic Quick Couplings - 71 Series

Parker's high pressure stainless steel, non-spill, flat face hydraulic couplers are available in a wide range of sizes for use in hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 76 days
Partner Available:	6 in stock

SKU 71-3N6-8F

$76.19/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	10000
Coupling Half	Male Nipple	Body Material	Steel
Connection Thread Size (inch)	1/2 - 14	Body Size (inch)	3/8
Connection Type	Female NPTF	Dimensional Weight	0.05460431654676258 lb
Application	Hydraulics	Body Material	Steel
Seal Material	Nitrile	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Valve Type	Non-spill
Minimum Operating Temperature	-40 °F	Hex Size	1.25 inch
Plating Type	Zinc with Clear Trivalent Chromate	Product Type	Push to Connect

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
