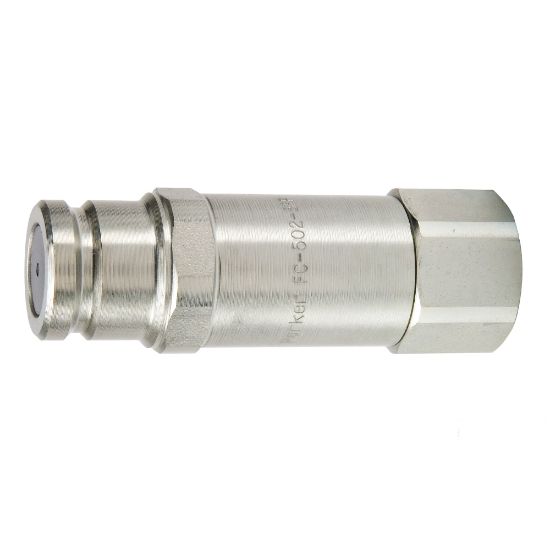

FC-502-10FO - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	29 in stock

SKU FC-502-10FO

$180.51/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/2
Interchange Type	na	Maximum Operating Pressure	3000
Connection Thread Size (inch)	7/8 - 14	Coupling Half	Male Nipple
Connection Type	Female UNF	Plating Type	Zinc with Clear Trivalent Chromate
Hex Size	1.125 inch	Minimum Operating Temperature	-40 °F
Maximum Operating Temperature	250 °F	Seal Material	Polyurethane/Nitrile
Product Type	Push to Connect	Body Material	Steel
Valve Type	Non-spill	Division	Quick Coupling Division
Application	Hydraulics	Dimensional Weight	0.12464028776978417 lb
Flow Rate	12 Gal/min
