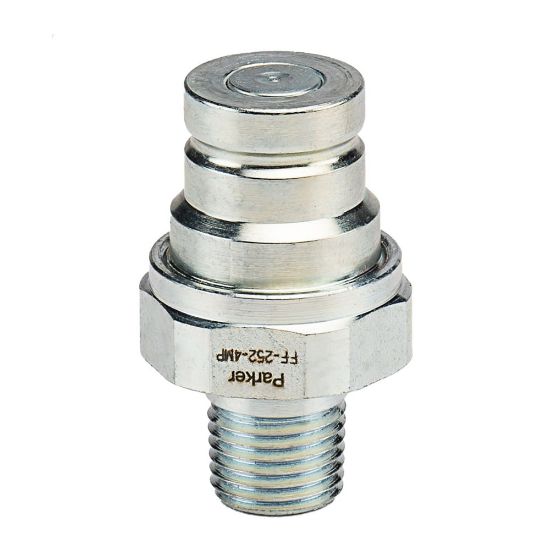

FF-252-4MP - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Name: FF-252-4MP - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series
SKU: FF-252-4MP
Price: 80.30 USD
Availability: InStock

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Manufacturer: Parker

Availability:

4 in stock

WICHITA, KS

Partner Available:

26 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU FF-252-4MP

$80.30/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Male NPTF
Connection Thread Size (inch)	1/4 - 18	Interchange Type	na
Coupling Half	Male Nipple	Maximum Operating Pressure	5000
Body Size (inch)	1/4	Plating Type	Zinc with Clear Trivalent Chromate
Minimum Operating Temperature	-40 °F	Hex Size	1 inch
Application	Hydraulics	Maximum Operating Temperature	250 °F
Seal Material	Nitrile	Product Type	Push to Connect
Valve Type	Non-spill	Division	Quick Coupling Division
Flow Rate	3 Gal/min	Dimensional Weight	0.02670863309352518 lb
Body Material	Steel

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
