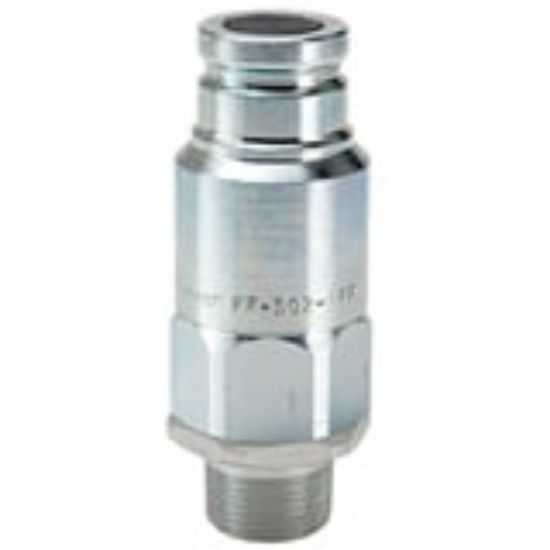

FF-252-6MO - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	1 Limited Stock

SKU FF-252-6MO

$115.13/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	5000
Connection Thread Size (inch)	9/16-18	Coupling Half	Male Nipple
Interchange Type	na	Body Size (inch)	1/4
Connection Type	Male UNF	Product Type	Push to connect
Plating Type	Zinc with clear trivalent chromate	Division	Quick Coupling Division
Valve Type	Non-spill	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Body Material	Steel
Hex Size	1.00 inch	Minimum Operating Temperature	-40 °F
Application	Hydraulic, Non-spill	Flow Rate	3 Gal/min
