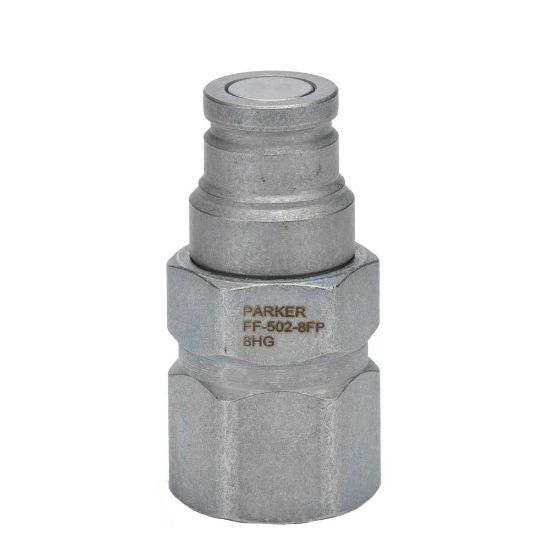

FF-502-8FP-E4 - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	8 in stock

SKU FF-502-8FP-E4

$97.89/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/2
Coupling Half	Male Nipple	Connection Thread Size (inch)	1/2 - 14
Connection Type	Female NPSF	Maximum Operating Pressure	3000
Interchange Type	na	Valve Type	Non-spill
Division	Quick Coupling Division	Maximum Operating Temperature	400 °F
Seal Material	Fluorocarbon	Body Material	Steel
Hex Size	36 mm	Minimum Operating Temperature	-15 °F
Flow Rate	12 Gal/min	Application	Hydraulic, Non-spill
Product Type	Push to connect	Plating Type	Zinc nickel plating

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
