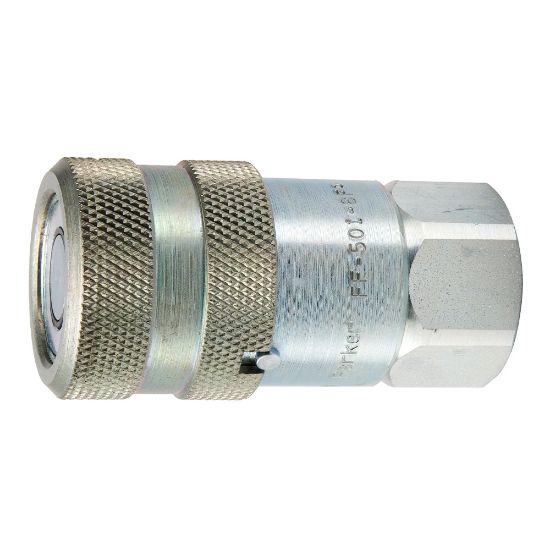

FF-751-12FP - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Name: FF-751-12FP - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series
SKU: FF-751-12FP
Price: 196.24 USD
Availability: InStock

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Manufacturer: Parker

Availability:

41 in stock

Olivette, MO	14
Kansas City, KS	6
Joplin, MO	4
Springfield, MO	3
COLUMBIA, MO	3
WICHITA, KS	2
TOPEKA, KS	2
Peoria, IL	2
Olivette, MO	2
Decatur, IL	2
Kansas City, KS	1

Partner Available:

213 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU FF-751-12FP

$196.24/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Connection Thread Size (inch)	3/4 - 14	Connection Type	Female NPSF
Maximum Operating Pressure	3000	Body Size (inch)	3/4
Interchange Type	na	Dimensional Weight	0.22473021582733813 lb
Flow Rate	28 Gal/min	Body Material	Steel
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with Clear Trivalent Chromate
Hex Size	1.75 inch	Application	Hydraulics
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Product Type	Push to Connect	Division	Quick Coupling Division
Valve Type	Non-spill
