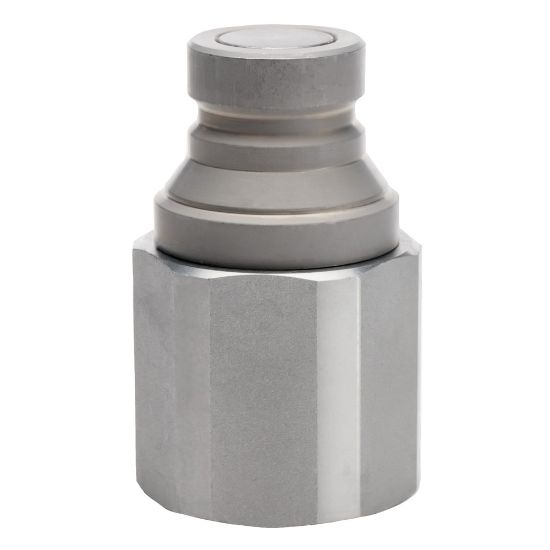

FEM-1002-16FO - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	4 in stock

SKU FEM-1002-16FO

$179.07/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	Non-spill
Connection Thread Size (inch)	1 5/16 - 12	Body Size (inch)	1
Maximum Operating Pressure	2900	Connection Type	Female NPTF
Coupling Half	Male Nipple	Specifications Met	ISO 16028
Flow Rate	170 L/min	Application	n/a
Dimensional Weight	0.6232014388489209 lb	Plating Type	Zink Nickel
Product Type	Push to Connect	Hex Size	55 mm
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Seal Material	Polyurethane/Nitrile
Body Material	Steel

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
