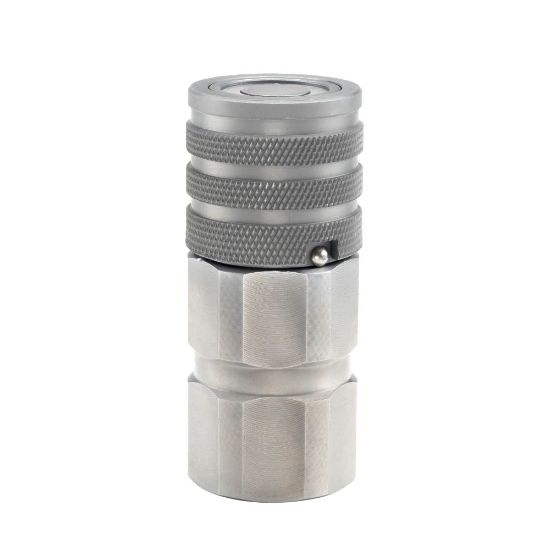

FEM-501-8FO - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Name: FEM-501-8FO - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series
SKU: FEM-501-8FO
Price: 76.12 USD
Availability: InStock

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Manufacturer: Parker

Availability:

21 in stock

Olivette, MO	5
Kansas City, KS	4
WICHITA, KS	2
COLUMBIA, MO	2
Joplin, MO	2
Olivette, MO	2
Decatur, IL	2
Wichita, KS	1
Springfield, MO	1

Partner Available:

269 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU FEM-501-8FO

$76.12/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	Non-spill
Coupling Half	Female Coupler	Connection Type	Female UNF
Body Size (inch)	1/2	Connection Thread Size (inch)	3/4 - 16
Maximum Operating Pressure	5000	Flow Rate	12 Gal/min
Application	Non-spill	Dimensional Weight	0.15995203836930455 lb
Body Material	Steel	Plating Type	Zinc Nickel
Hex Size	36 mm	Specifications Met	HTMA
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	250 °F
Seal Material	Polyurethane/Nitrile	Product Type	Push to Connect
Division	Quick Coupling Division
