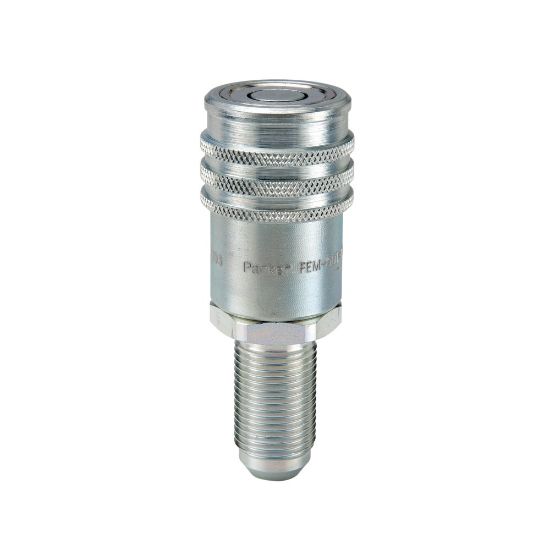

FEM-621-16BMF-NL - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU FEM-621-16BMF-NL

$138.31/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1 5/16-12 UN
Maximum Operating Pressure	5000	Valve Type	Non-spill
Coupling Half	Female Coupler	Body Size (inch)	5/8
Connection Type	Male Bulkhead Flare	Body Material	Steel
Division	Quick Coupling Division	Application	Hydraulics
Flow Rate	20 Gal/min	Specifications Met	HTMA
Plating Type	Zinc Nickel	Minimum Operating Temperature	-40 °F
Hex Size	40 mm	Maximum Operating Temperature	250 °F
Seal Material	Polyurethane/Nitrile	Product Type	Push to Connect
Material	Steel	Flow Rate	20 gpm
Min. Operating Temperature	-40 °F	Max. Operating Temperature	250 °F
Type	Push To connect	Parker Group	Fluid Connector
Hex Size	40 MM	Parker Division	Quick Coupling
Coating	Zinc Nickel	Seal Material	Polyurethane and Nitrile
