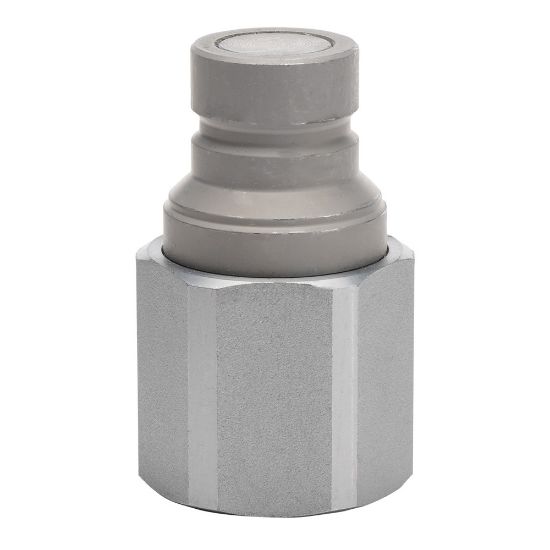

FEM-622-12FO - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Name: FEM-622-12FO - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series
SKU: FEM-622-12FO
Price: 65.28 USD
Availability: LimitedAvailability

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Manufacturer: Parker

Availability:

2 Limited Stock

TOPEKA, KS	1
Olivette, MO	1

Partner Available:

129 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU FEM-622-12FO

$65.28/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	5/8
Maximum Operating Pressure	3625	Connection Thread Size (inch)	1 1/16 - 12
Connection Type	Female UNF	Coupling Half	Male Nipple
Valve Type	Non-spill	Product Type	Push to Connect
Hex Size	36 mm	Plating Type	Zinc with Clear Trivalent Chromate
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Seal Material	Polyurethane/Nitrile	Maximum Operating Temperature	250 °F
Body Material	Steel	Specifications Met	HTMA
Application	Hydraulics	Dimensional Weight	0.15995203836930455 lb
Flow Rate	20 Gal/min

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
