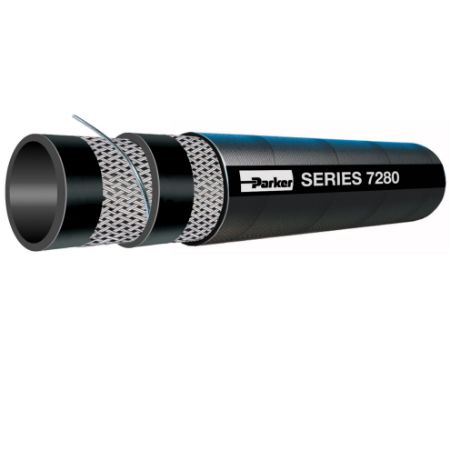

FLEX-EVER™ 2000 Hardwall Gasoline Dispenser Hose, Series 7280
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series 7280 Hardwall Gasoline Dispenser Hose provides excellent service across a wide variety of industrial and commercial curb pump applications. The robust construction reduces meter creep for accurate consumption data and provides excellent crush resistance and kink resistance and full suction capability for maximum performance. The non-marking hose cover does not deface the finish of vehicles and resists abrasion, oil and weathering. Series 7280 is qualified with permanent crimp couplings for a safe and secure connection and provides robust service in consumer-oriented applications.
Markets:
• General Industrial
• Oil & Gas
Features/Benefits:
• Tube: Black nitrile for fuel compatibility to 180°F.
• Reinforcement: Multiple textile braids for kink resistance, and dual wire helix for a path to conduct an electrical charge to ground.
• Cover: Black CPE for abrasion, oil and weathering resistance.
Applications:
- media
• Refined fuels
• Diesel
• Ethanol
• Gasoline
• Oil
- usage
• Curb pumps
• Gasoline dispensers
• In-plant/tank transfer
• Car rental facilities
• Convenience stores
• Garages
• Service stations
Industry Standards:
• UL330/ULC
Safety/Technical:
• Design Factor: 5:1
• Not UL listed for E85 service
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
• Do not use Parker gasoline dispenser hose for aircraft fueling applications. Use only API/NFPA qualified hose for aircraft fueling applications.
| Action | SKU | Availability | Partner Available | Price | UOM | Maximum Working Pressure (psi) | Hose I.D. (inch) | Division | Length per Package | Cover Color | Media | Maximum Operating Temperature | Hose Inner Tube Material | Cover Structure | Minimum Operating Temperature | Minimum Bend Radius | Hose Reinforcement Material | Cover Material | Outside Diameter | Weight | Package Type | Inside Diameter | Maximum Operating Pressure | Application | Specifications Met |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7280-1002A | 296 in stock | 1405 in stock | $18.30/foot | FT | 50 | 1 | Hose Products Division | 500 ft | Black | Fuels (Diesel) - Check fuel type with our catalogue chart. | 180 °F | Nitrile | Wrapped | -40 °C | 5 inch | 2 Braids or Plies of Textile with Wire Helix | Chloroprene Rubber (CR) | 36.9 mm | 0.29 kg | Reel | 1 inch | 3 bar | Petroleum Transfer | NFPA 30A | |
| 7280-632A | Backordered | Backordered | $11.32/foot | FT | 50 | 5/8 | Hose Products Division | 500 ft | Black | Fuels (Gasoline) - Check fuel type with our catalogue chart. | 180 °F | Black | Wrapped | -40 °F | 3 inch | 2 Braids or Plies of Textile with Wire Helix | Chloroprene Rubber (CR) | 1.031 inch | 0.39 lb | Reel | 5/8 inch | 3.447 bar | Petroleum Transfer | UL 330/ULC | |
| 7280-752A | Backordered | 630 in stock | $16.51/foot | FT | 50 | 3/4 | Hose Products Division | 500 ft | Black | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | 180 °F | Nitrile | Wrapped | -40 °F | 4 inch | 2 Braids or Plies of Textile with Wire Helix | Chloroprene Rubber (CR) | 1.172 inch | 0.47 lb | Reel | 3/4 inch | 50 psi | Petroleum Transfer | UL 30, N4 (factory assemblies) |
