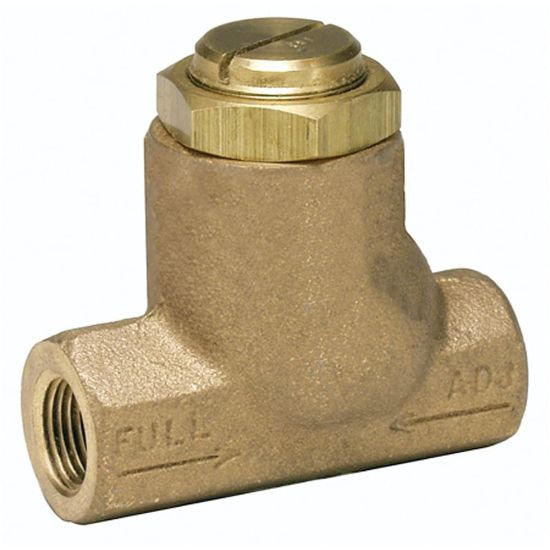

3250G0319 - Flow Control Valve - 3250 Series

The 3250 series flow control valves are designed to accurately meter the flow of air with large port sizes up to 1-1/2" NPT and flows of 1800 SCFM. Each valve has a fine screw adjustment, allowing precise settings that are secured by a sturdy lock nut.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 3250G0319

$100.57/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	BSPP
Port Size (inch)	3/8	Division	Pneumatic Division
Product Type	Flow Control	Operating Temperature	-40° to +82° °C
Media	Air	Flow Rate	220 (metered)<br>205 (free flow) SCFM
Lubricant	None	Port Size	3/8"
Port Type	BSPP	Body Material	Brass or Cast Aluminum
Seal Material	Buna N<br>Urethane	Options	Extended Temperature Version
Mounting Type	Inline	Operation Type	Meter Screw, Screw Drive Flat
Needle Material	Stainless Steel	Port Connection	Female to Female
Flow Coefficient	-	Operating Pressure	0 - 250

Product resources

Literature and Reference Materials
