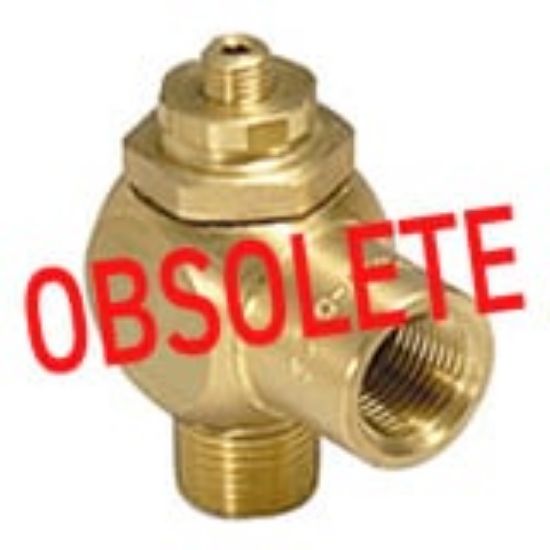

032510250 - Flow Control Valve - 3251 Series

Note: This product is no longer available - please contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 41 days
Partner Available:	3 in stock

SKU 032510250

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size (inch)	1/4
Port Connection	Male to Female	Thread Size (Inch)	1/4
Mounting Type	Rotating Right Angle	Flow Rate	14 to 88 SCFM (metered)
Port Connection	Male to Female	Port Type	NPT
Operating Temperature	-18 to 60	Body Material	Brass
Operation Type	Hex Head	Lubricant	None
Flow Coefficient	0.26 to 1.64 Cv (metered)	Division	Pneumatic Division
Needle Material	Brass	Options	Push-to-Connect Fittings Available
Seal Material	Nitrile Butadiene Rubber (NBR)	Media	Air
Product Type	Flow Control	Port Size	1/4
Operating Pressure	0 to 125
