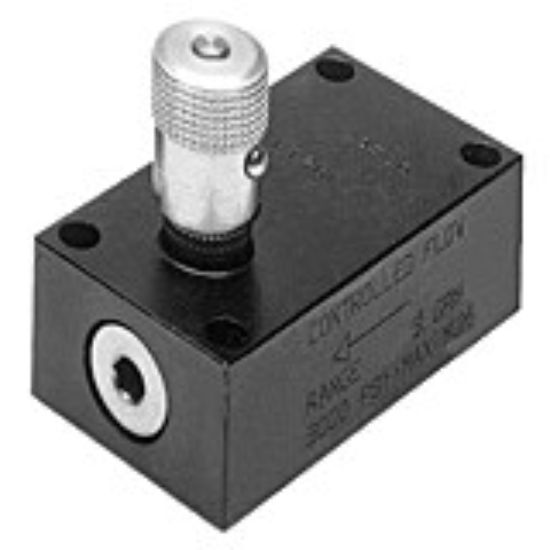

PCMS600SF-V - Flow Control Valve, Subplate Mounted - PC*MS Series

Parker’s PMCS series valves are designed to regulate flow at a selected rate.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 150 days
Partner Available:	Backordered

SKU PCMS600SF-V

$5,571.72/each

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Subplate
Maximum Operating Pressure	3000 PSI	Maximum Flow Rate	6.0 GPM
Maximum Operating Temperature	+400 °F	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	6.0	Minimum Flow Rate	0.6
Function	Pressure Compensated Flow Control	Connection Size	3/8 inch
Seal Material	Fluorocarbon	Body Material	Steel
Connection Type	NPT	Knob Style	Finger Screw
Actuation Type	Manually	Configuration	Subplate Mount
Maximum Operating Pressure	3000	Minimum Operating Temperature	-15 °F

Product resources

Literature and Reference Materials

CATALOGUE - Flow Control Valve Series PCMS (Europe and Asia) (PDF)
