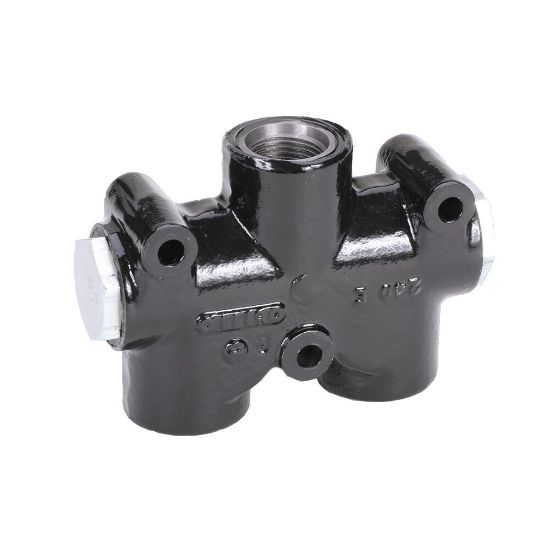

PDC-12-50 - Flow Divider – PD Series

Parker’s PD and PDC accessory valves are pressure compensated flow dividers that are designed for applications where two separate hydraulic circuits are to be served from a single pump.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	1 Limited Stock

SKU PDC-12-50

$615.68/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	In-line
Flow Rate	20-35 GPM	Maximum Operating Pressure	2500 PSI
Port Size	SAE-12	Ratio	50/50
Mounting Type	In-Line	Configuration	Flow Divider/Combiner
Flow Rate	20-35 Gal/min	Actuation Type	Hydraulic Pressure
Function	Flow Divider	Connection Size	#12
Minimum Operating Temperature	-40 °F	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	N/A	Connection Type	SAE
Seal Material	Nitrile	Maximum Operating Temperature	+200 °F
Maximum Operating Pressure	2500 psi	Body Material	High Strength Cast Iron
Weight	7 lb	Ratio	50/50
