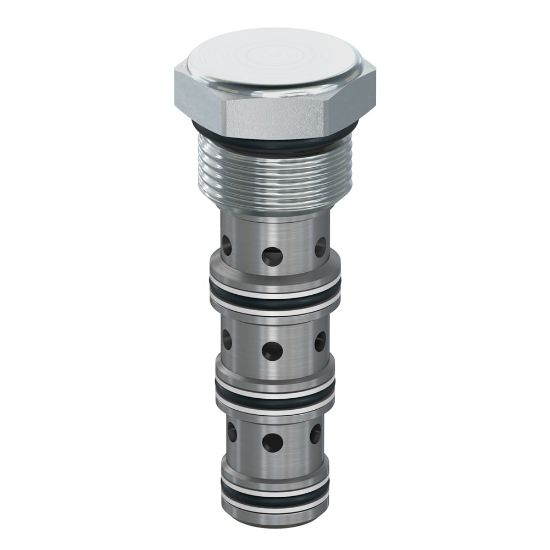

FDC101A33V - Flow Divider/Combiner Valves

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU FDC101A33V

$134.42/each

Products specifications

Attribute name	Attribute value
UOM	EA	Ratio	50/50
Standard Flow Rate Setting	3-6 GAL/MIN, 11.3-22.5 L/MIN	Flow Rate	12 GAL/MIN, 45 L/MIN
Seal Material	Fluorocarbon	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Fluorocarbon	Maximum Inlet Pressure Rating	3500 psi
Maximum Operating Temperature	+400 °F	Function	Flow Divider/Combiner
Connection Size	N/A	Operation Type	Automatic
Standard Flow Rate Setting	3-6 Gal/min	Ratio	50/50
Division	Hydraulic Systems Division	Division	Hydraulic Cartridge Systems Division
Connection Type	N/A	Maximum Flow Rate	45 L/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	N/A	Operating Temperature	-15 to +400 °F
Flow Rate	45 L/min	Actuation Type	Interlocking Spools
Installation Torque	16 lb-ft	Weight	0.14 kg
Maximum Operating Pressure	245 bar	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Flow Rate Accuracy	10%	Body Material	N/A
Cavity Size	C10-4	Minimum Operating Temperature	-15 °F
