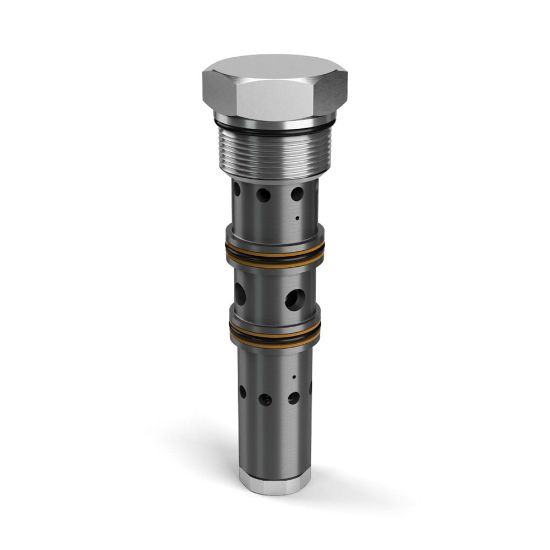

L1A3003205050N - Flow Divider/Combiner Valves

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	Backordered

SKU L1A3003205050N

$1,818.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Standard Flow Rate Setting	29.1-84.7 GAL/MIN, 110-320 L/MIN
Seal Material	Nitrile	Ratio	50/50
Flow Rate	85 GAL/MIN, 320 L/MIN	Seal Material	Nitrile
Maximum Inlet Pressure Rating	5000 psi	Valve Material	All parts steel. All operating parts hardened steel
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	85 Gal/min
Connection Type	N/A	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+121 °C	Minimum Operating Temperature	-34 °C
Cavity Size	91-1	Function	Flow Divider/Combiner
Connection Size	N/A	Configuration	N/A
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-34 to +121 °C	Flow Rate	320 L/min
Actuation Type	Interlocking Spools	Operation Type	Automatic
Ratio	50/50	Standard Flow Rate Setting	110-320 L/min
Division	Mobile Hydraulic Systems Division Europe	Flow Rate Accuracy	10%
Weight	1 kg	Maximum Operating Pressure	350 bar
Body Material	N/A	Installation Torque	150 Nm
