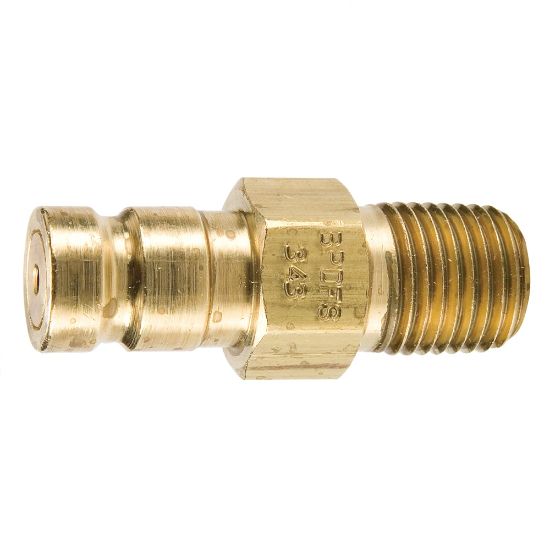

BPDFS343 - Fluid Sampling, Diagnostic Quick Couplings – PDFS and BPDFS

Diagnostic fluid sampling test port quick couplings are designed to provide an easy access point for obtaining fluid samples.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	18 in stock

SKU BPDFS343

$32.55/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/4 - 18 NPTF
Coupling Half	Nipple	Thread Style	Male
Seal Material	Fluorocarbon	Body Size	1/8 inch
Coupling Half	Nipple	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Maximum Operating Pressure	500 psi
Body Material	Brass	Minimum Operating Temperature	-40 °F
Application	Fluid System Diagnostics
