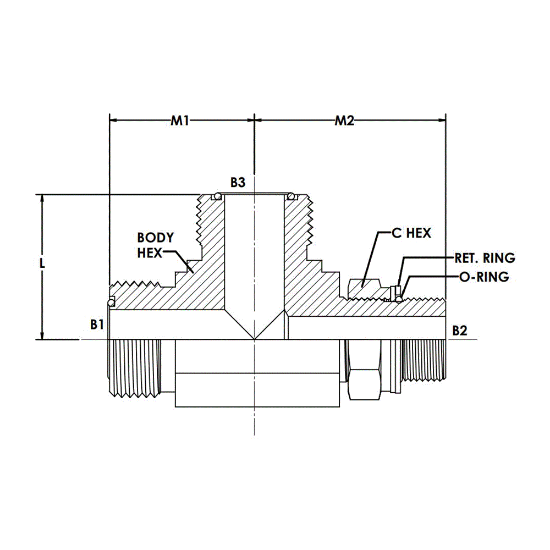

FS7215-06-16-06-NWO-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU FS7215-06-16-06-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Tee
Connection Type	MFS-MMAORB RR-MFS	Style	Tee Adapter
Thread Size 2	M16 x 1.5	Standard	Prop-65 Warning
Material	Steel	Series	FS7215-NWO-FG-ORR
Raw Material Type	Steel Forging	Thread Size 1	11/16-16
O-Ring/Seal Material	NBR	Thread Specification 2	ISO 9974
Plating	CR3	Thread Size 3	11/16-16
Thread Specification 3	SAE J1453	Thread Type 3	Male Face Seal O-Ring
Thread Type 1	Male Face Seal O-Ring	Thread Specification 1	SAE J1453
Thread Type 2	Male Metric Adjustable ORR
