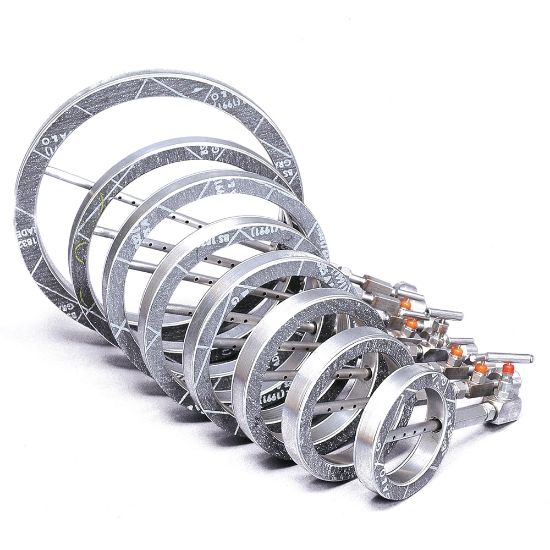

FG-K26280-KW - Fuel Drip Bunker Samplers

Parker bunker samplers are designed to provide a representative sample of the entire fuel delivery. Manufactured from stainless steel.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU FG-K26280-KW

$0.24/each

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	IMO MARPOL Aprooved Fuel Sample Label
Quantity per Box	1000	Signal Output	n/a
Wetted Material	Stainless steel, PTFE, non-asbestos grade Y gasket (aramid/glass fibres and nitrile rubber)	Brand	Parker
Electrical Requirements	n/a	Flow Rate	Needle valve to control drip rate
Cycle Time	n/a	Technology	Filtration
Options	Wide range of line diameters: 50 mm (2") up to 300 mm (12") in 25 mm (1")	Accuracy	n/a
Product Type	Condition Monitoring	Operating Pressure	580
Connection Type	Multiple line diameter versions from 50 mm to 350 mm	Industry	Transportation
Communication Interface	n/a	Ingress Protection Rating	n/a
Sensing Method	n/a	Division	Hydraulic & Industrial Process Filtration Division EMEA
Size	515 to 840 x 31.5 x 95 to 401 mm (Height x Width x Diameter)	Sensing Range	n/a
Accessories Included	Sample containers, anti-tamper locks, bottle seals and labels available separately	For Fluid Type	Mineral and synthetic fluids: Lubricant oils, hydraulic oils, distillate fuels, water-based fluids and bio-based fuels
Operating Temperature	-18 to 85 °C for Cubitainer	Features	Simple and effective continuous fuel sampling for the entire delivery as ISO 13739<br/>ASTM D 4057: 2000 Standard practice for manual sampling of petroleum and petroleum products
Weight	3 to 12	Sensor Connection	n/a
Division	Hydraulic & Industrial Process Filtration Division EMEA

Product resources

Literature and Reference Materials
