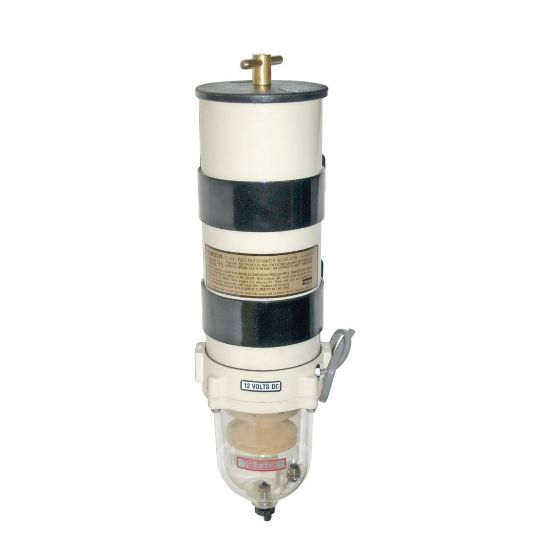

1000FH30 - Fuel Filter Water Separator – Racor Turbine Series

The Racor Fuel Filter Water Separator Turbine Series is a three-stage filtration system that provides maximum protection of diesel engine components by effectively removing contaminants from fuel, such as water, silica, sand, dirt, and rust.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 1000FH30

$557.07/each

Products specifications

Attribute name	Attribute value
UOM	EA	Heater	Not Included
Location	North America and EMEA regions	Flow Rate	180 gph (681 lph)
Part Type	1000 Single Turbine Assembly	Product Type	OBSOLETE Turbine Housing
Micron Rating	98% @ 30 Micron	Division	Engine Mobile Original Equipment Division
Brand	Racor	Application	Mobile Filtration
Valve Type	None	Connection Type	7/8"-14 UNF-2B Female
Bowl Type	Clear Engineering Plastic	Catalog Number	See RSL0410
Series or Model Replaced	Replaced by 1000FV10

Product resources

Literature and Reference Materials

Distributor Support

Selector Guides

Racor--Turbine Series Catalog--RSL0385 (PDF)
