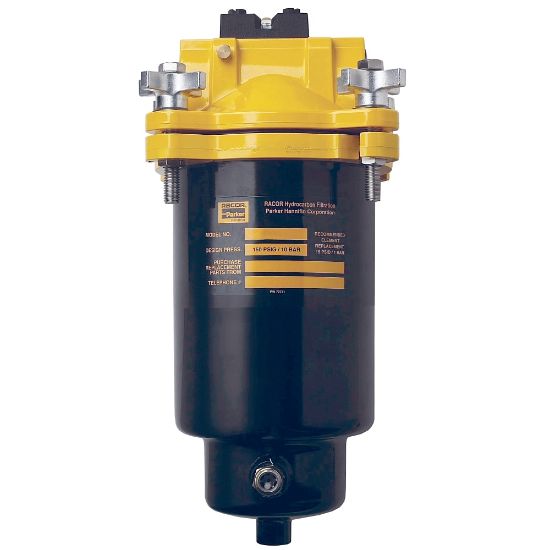

FBO-10-DPL - Fuel Filtration Assemblies – Racor FBO Series

Racor FBO Series Filtration Assemblies are designed to meet the tough conditions of today’s industrial and marine refueling operations. The filters come in a variety of configurations and offer easy, tool-free cartridge change-outs.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU FBO-10-DPL

$1,002.37/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate (gpm)	Up to 25 in Diesel, 55 Gasoline
Pre-Installed Optional Accessories	DP Indicator, Water Sight Glass	Number of Housings	One Head and Housing
Flow Rate (lph)	Up to 95 in Diesel, 200 Gasoline	Filter Element	Filter Element Ordered Separately
Use Case	Industrial	Heat Type	Option: Part# FBO-HTR-KIT
Port Size	1-1/2 inch (2x)	Indicator Type	Delta P Indicator Included
Division	Engine Mobile Original Equipment Division	Width	21.8 cm
Valve Type	None	Water Sensor Option	Order Part# RK18-1656 bushing + RK30880E Sensor
Pressure Rating	150 psi at 240°F	For Fluid Type	Diesel/B20/Gasoline
Micron Rating	10 MICRON	Height	20 inch
Weight	15 lb	Additional Options	Water Sight Glass Included
Brand	Racor	Compatible Element	FBO SERIES REPLACEMENT ELEMENTS
Mounting Type	Optional Bracket Kit Part# 73084	Product Series	Cartridge FF/WS
Operating Temperature	-40 to 255 °F	Drain Option	Drain Valve Included
Application	Fuel Transfer/Engine Filtration	Materials of Construction	Aluminum head, Steel Bowl
