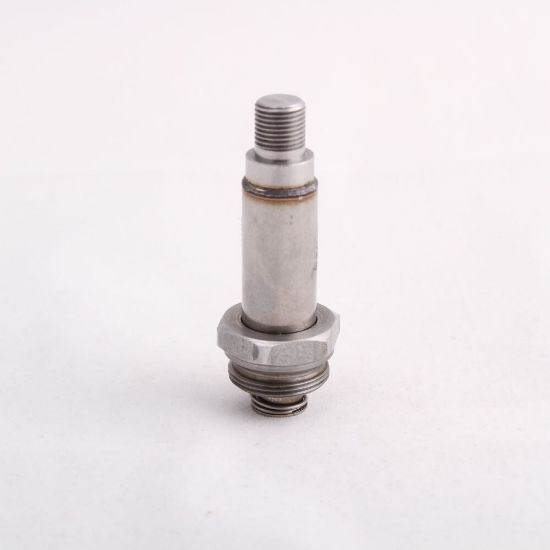

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

209CL5LV4 - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	252 in stock

SKU 209CL5LV4

$72.68/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	All Ports in Body
Port Type	Cartridge	Actuation Type	Direct Acting
Preventive Maintenance Kit	n/a	Maximum Pressure Differential	130 psi (DC)
Orifice Size	3/32 inch	Maximum Ambient Temperature	125 °F (DC)
Coil Type	Requires G4 Series Coil Kit	Valve Type	2-Way
Body Material	Stainless Steel 303	Seal Material	FKM
Main Flow Coefficient	0.22 Cv	Function	Normally Closed (NC)
Media	General Purpose	Division	Fluid Control Division
Minimum Pressure Differential	0 psi	Maximum Fluid Temperature	240 °F
Power Consumption	8.5 W (AC)	Input Voltage	Pressure Vessel Only (AC or DC Voltage)
Port Size	3/4-24 UNS-2A inch	Installation	IOM CV4

Product resources

Literature and Reference Materials
