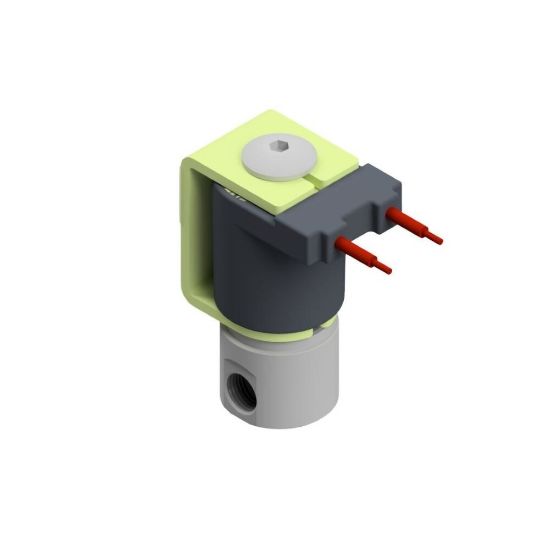

20CC02JV4L2B - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 20CC02JV4L2B

$95.63/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Pressure Differential	180 psi
Configuration	All Ports in Body	Actuation Type	Direct Acting
Body Material	Stainless Steel 303	Port Type	NPT
Preventive Maintenance Kit	4R001	Orifice Size	5/64 inch
Coil Type	Open Frame, 18" Leads	Division	Fluid Control Division
Insulation Class	F (155°C)	Valve Type	2-Way
Maximum Ambient Temperature	125 °F	Function	Normally Closed (NC)
Installation	IOM 204	Main Flow Coefficient	0.15 Cv
Port Size	1/8 inch	Media	General Purpose
Seal Material	FKM	Minimum Pressure Differential	0 psi
Specifications Met	CE	Maximum Fluid Temperature	240 °F
Input Voltage	24 VDC	Power Consumption	8 W
