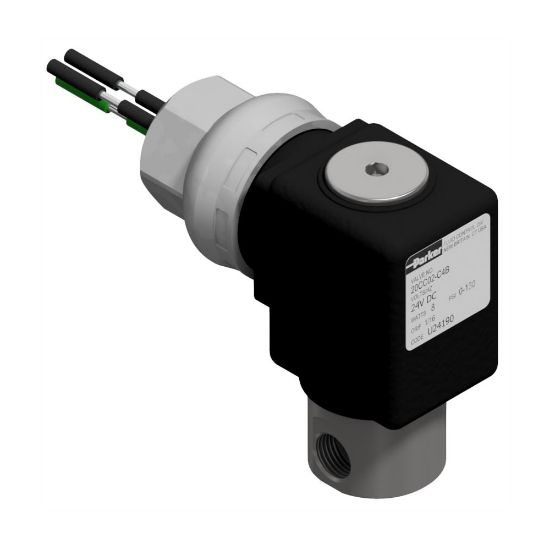

20CC02LV4C4B - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 20CC02LV4C4B

$106.10/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Fluid Temperature	240 °F
Power Consumption	8 W	Media	General Purpose
Function	Normally Closed (NC)	Port Size	1/8 inch
Installation	IOM 204	Input Voltage	24 VDC
Maximum Pressure Differential	130 psi	Actuation Type	Direct Acting
Preventive Maintenance Kit	4R001	Configuration	All Ports in Body
Port Type	NPT	Orifice Size	3/32 inch
Specifications Met	CULus Safety Shutoff	Ingress Protection Rating	NEMA 4X
Insulation Class	F (155°C)	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Body Material	Stainless Steel 303	Minimum Pressure Differential	0 psi
Main Flow Coefficient	0.22 Cv	Seal Material	FKM
Valve Type	2-Way	Division	Fluid Control Division
Maximum Ambient Temperature	125 °F
