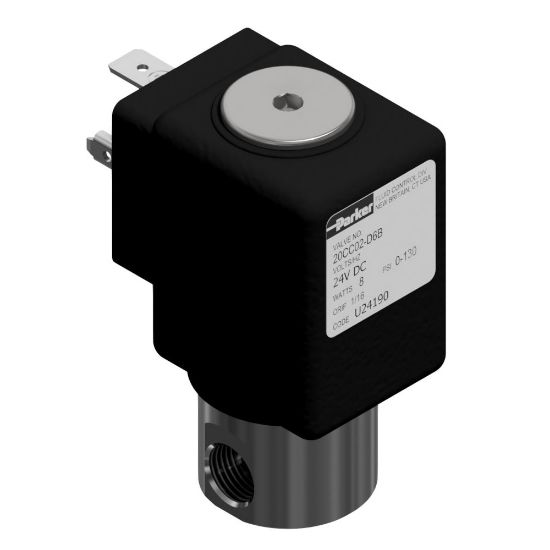

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

20CC02LV4D6F - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 20CC02LV4D6F

$100.54/each

Products specifications

Attribute name	Attribute value
UOM	EA	Insulation Class	H (180°C)
Ingress Protection Rating	NEMA 4X	Valve Type	2-Way
Maximum Ambient Temperature	135 °F	Coil Type	DIN 43650A / ISO 4400
Body Material	Stainless Steel 303	Installation	IOM 204
Media	General Purpose	Function	Normally Closed (NC)
Main Flow Coefficient	0.22 Cv	Minimum Pressure Differential	0 psi
Division	Fluid Control Division	Seal Material	FKM
Maximum Fluid Temperature	240 °F	Power Consumption	8.5 W
Port Size	1/8 inch	Input Voltage	110/50 VAC
Preventive Maintenance Kit	4R001	Maximum Pressure Differential	320 psi
Actuation Type	Direct Acting	Configuration	All Ports in Body
Port Type	NPT	Orifice Size	3/32 inch
Specifications Met	CURus Safety Shutoff

Product resources

Literature and Reference Materials
