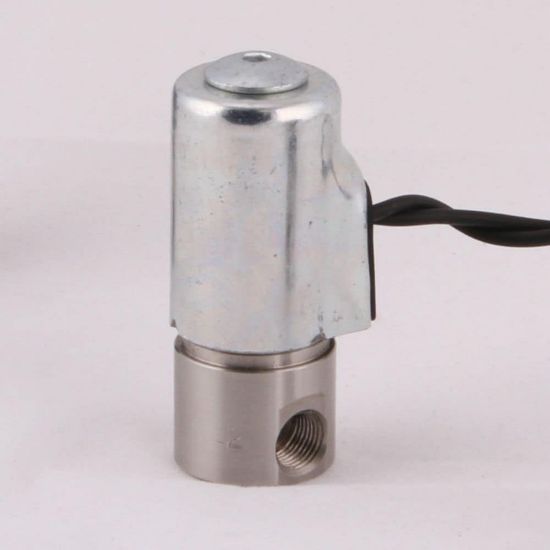

20CC02PV4B2F - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 20CC02PV4B2F

$91.04/each

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	2-Way
Insulation Class	F (155°C)	Division	Fluid Control Division
Maximum Ambient Temperature	135 °F	Coil Type	Grommet
Port Size	1/8 inch	Media	General Purpose
Installation	IOM 204	Function	Normally Closed (NC)
Minimum Pressure Differential	0 psi	Seal Material	FKM
Main Flow Coefficient	0.32 Cv	Specifications Met	CURus Safety Shutoff
Maximum Fluid Temperature	240 °F	Power Consumption	8.5 W
Input Voltage	110/50 VAC	Body Material	Stainless Steel 303
Actuation Type	Direct Acting	Preventive Maintenance Kit	4R001
Maximum Pressure Differential	175 psi	Configuration	All Ports in Body
Port Type	NPT	Orifice Size	1/8 inch
