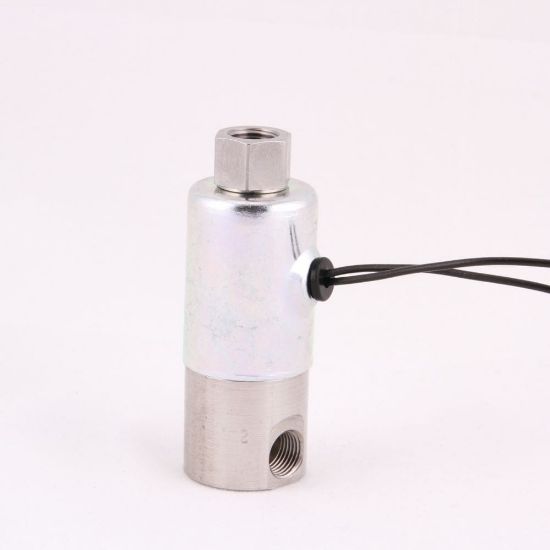

30CC02EV4B2A - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 30CC02EV4B2A

$112.65/each

Products specifications

Attribute name	Attribute value
UOM	EA	Exhaust Orifice Size	3/64 inch
Maximum Ambient Temperature	125 °F	Valve Type	3-Way
Insulation Class	F (155°C)	Coil Type	Grommet
Division	Fluid Control Division	Port Type	NPT
Preventive Maintenance Kit	4R002	Orifice Size	3/64 inch
Actuation Type	Direct Acting	Body Material	Stainless Steel 303
Maximum Pressure Differential	200 psi	Configuration	Pressure In Body - Out Sleeve
Port Size	1/8 inch	Power Consumption	8 W
Input Voltage	12 VDC	Exhaust Flow Coefficient	0.05 Cv
Maximum Fluid Temperature	240 °F	Specifications Met	CURus General Purpose
Minimum Pressure Differential	0 psi	Seal Material	FKM
Installation	IOM 304	Media	General Purpose
Function	Normally Closed (NC)	Main Flow Coefficient	0.05 Cv
