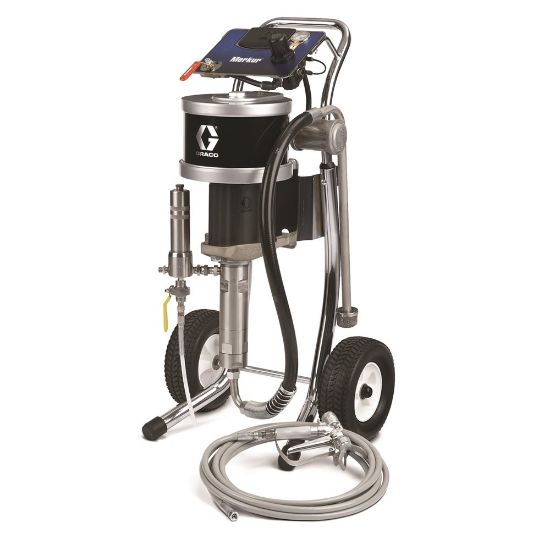

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

G45C04

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU G45C04

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Single Leg
Convertible	Non-Convertible	Series	Standard
Inlet Paint Strainer	8 Mesh;16 Mesh	Maximum Flow Rate	0.8 GPM
Maximum Working Pressure	4500 psi	Hose Inlet Diameter	1/4 Inch
Mix Ratio	45:1	Pump Sleeve Material	Stainless Steel
Pump Rod Type	Carbon Steel	Fluid Inlet Size	3/4 Inch
Fluid Outlet Thread Gender	Male	Motor Type	Pneumatic
Lower Configuration	Stainless Steel;3/4 in. Inlet;Fluid Filter	Pump Type	Displacement;Pneumatic Piston
Air Inlet Size	1/2 Inch	Maximum Sound Pressure Level	70.2 dB(A)
Model	Merkur	Fluid Inlet Thread Type	NPT
Volume Per Cycle	50 Cubic cm	Maximum Air Inlet Pressure	100 psi
Mount Type	Cart	Fluid Outlet Thread Type	NPT
Number of Guns	1	Air Inlet Thread Type	NPT
Material Application	Paints;Primers	Pump Pressure Ratio	45:1
Maximum Tip Size	0.025 Inch	Fluid Outlet Size	3/8;1/4 Inch
Power Source	Air	Outlet Paint Filter	60 Mesh Stainless Steel Screen
Maximum Fluid Working Pressure	4500 psi	Frame Configuration	Cart Mount
Pressure Control Type	Air Regulator	Air Inlet Thread Gender	Female
Control Type	Fixed Ratio
