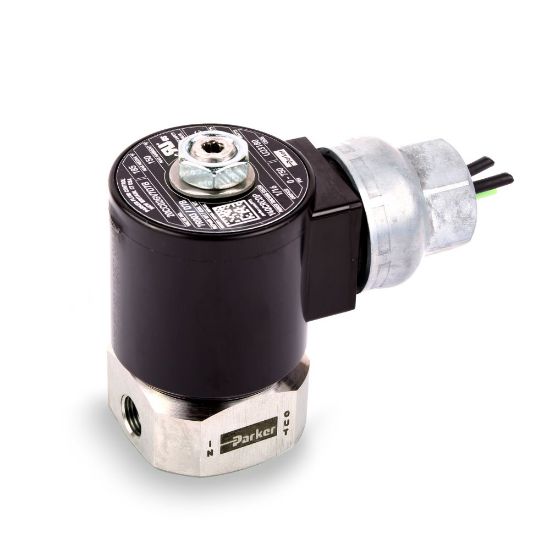

20CC04PV7C7A - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 20CC04PV7C7A

$162.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Seal Material	FKM	Configuration	Normally Closed
Voltage	12 VDC	Function	2-Way
Body Material	303 Stainless Steel	Port Size (inch)	1/4 NPT
Orifice Size (inch)	1/8	Minimum Pressure Differential (psi)	0
Maximum Operating Pressure Differential (psig)	165	Minimum Pressure Differential	0 psi
Coil Specifications Met	IP69	Seal Material	FKM
Main Flow Coefficient	0.29 Cv	Division	Fluid Control Division
Maximum Ambient Temperature	150 °F	Maximum Fluid Temperature	185 °F
Power Consumption	10 W	Input Voltage	12.0 VDC
Port Size	NPT 1/4 inch	Installation	IOM7220
Function	2-Way	Actuation Type	Direct Acting
Preventive Maintenance Kit	7R003	Maximum Pressure Differential	165 psig
Configuration	All Ports in Body	Orifice Size	1/8 inch
Exhaust Flow Coefficient	n/a	Specifications Met	CULus Safety Shutoff
Body Material	Stainless Steel 303
