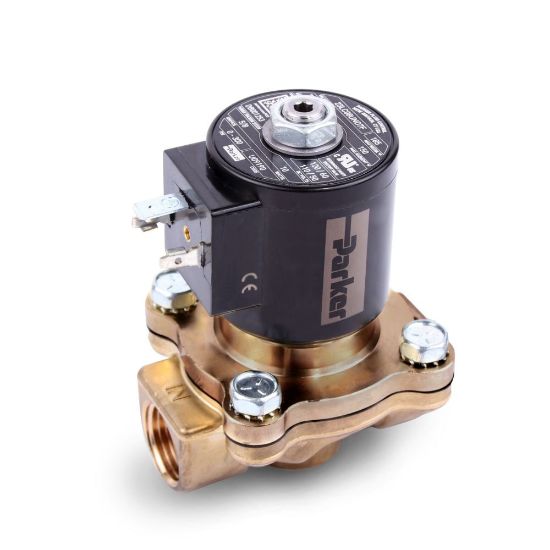

23LC12VN7D7F - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 23LC12VN7D7F

$236.26/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	NBR
Coil Type	DIN 43650A / ISO 4400	Body Material	Lead-Free Brass
Configuration	Normally Closed	Voltage	120/60, 110/50
Function	2-Way	Minimum Pressure Differential (psi)	0
Maximum Operating Pressure Differential (psig)	300	Port Size (inch)	3/4 NPT
Orifice Size (inch)	3/4	Division	Fluid Control Division
Port Size	NPT 3/4 inch	Input Voltage	120/60 VAC
Actuation Type	Direct Lift	Power Consumption	10 W
Body Material	Lead-Free Brass	Seal Material	NBR
Specifications Met	CURus Safety Shutoff	Maximum Pressure Differential	300 psig
Configuration	All Ports in Body	Function	2-Way
Coil Specifications Met	NEMA 4X	Maximum Fluid Temperature	185 °F
Minimum Pressure Differential	0 psi	Main Flow Coefficient	5 Cv
Exhaust Flow Coefficient	n/a	Installation	IOM7222
Orifice Size	3/4 inch	Preventive Maintenance Kit	7R014
Maximum Ambient Temperature	150 °F
