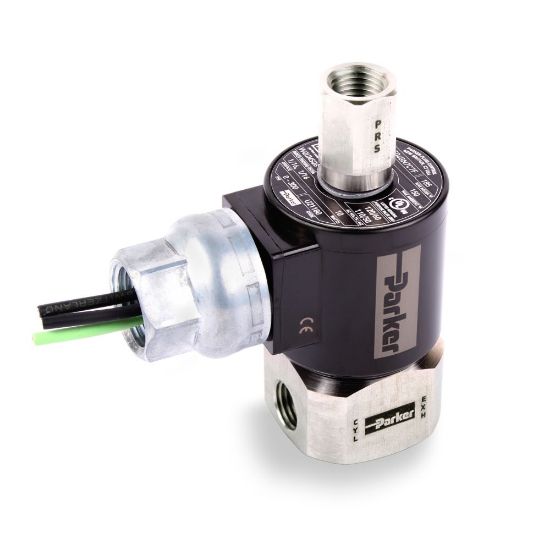

30CC04LN7C7F - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 30CC04LN7C7F

$189.17/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	NBR
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Configuration	Normally Closed
Voltage	120/60, 110/50	Body Material	303 Stainless Steel
Port Size (inch)	1/4 NPT	Orifice Size (inch)	3/32
Minimum Pressure Differential (psi)	0	Function	3-Way
Maximum Operating Pressure Differential (psig)	160	Division	Fluid Control Division
Port Size	NPT 1/4 inch	Input Voltage	120/60 VAC
Actuation Type	Direct Acting	Power Consumption	10 W
Body Material	Stainless Steel 303	Seal Material	NBR
Specifications Met	CULus General Purpose	Maximum Pressure Differential	160 psig
Configuration	Pressure In Body - Out Sleeve	Function	3-Way
Coil Specifications Met	IP69	Maximum Fluid Temperature	185 °F
Minimum Pressure Differential	0 psi	Main Flow Coefficient	0.18 Cv
Exhaust Flow Coefficient	0.17 Cv	Installation	IOM7221
Orifice Size	3/32 inch	Preventive Maintenance Kit	7R005
Maximum Ambient Temperature	150 °F
