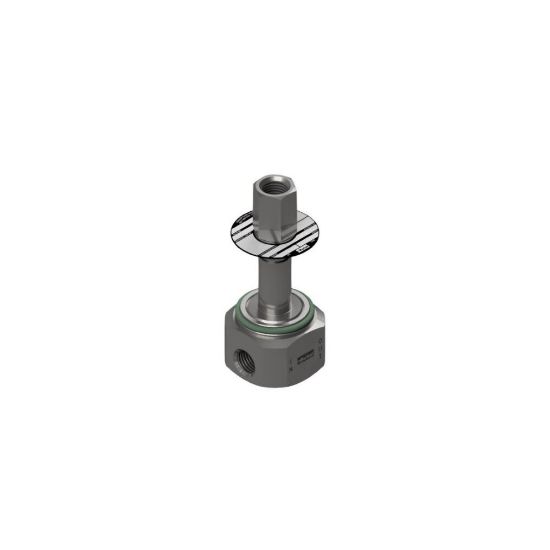

30CC04LV7 - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 30CC04LV7

$150.17/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	FKM
Configuration	Normally Closed	Voltage	Pressure Vessel Only (AC or DC Voltage)
Coil Type	Requires G7 Series Coil Kit	Body Material	303 Stainless Steel
Port Size (inch)	1/4 NPT	Orifice Size (inch)	3/32
Minimum Pressure Differential (psi)	0	Function	3-Way
Maximum Operating Pressure Differential (psig)	160	Division	Fluid Control Division
Port Size	NPT 1/4 inch	Input Voltage	Pressure Vessel Only (AC or DC Voltage)
Actuation Type	Direct Acting	Power Consumption	10 W
Body Material	Stainless Steel 303	Seal Material	FKM
Specifications Met	-	Maximum Pressure Differential	160 psig
Configuration	Normally Closed (NC)	Function	3-Way
Coil Specifications Met	Requires G7 Series Coil Kit	Maximum Fluid Temperature	185 °F
Minimum Pressure Differential	0 psi	Main Flow Coefficient	0.18 Cv
Exhaust Flow Coefficient	0.17 Cv	Installation	IOM7221
Orifice Size	3/32 inch	Preventive Maintenance Kit	7R008
Maximum Ambient Temperature	150 °F
