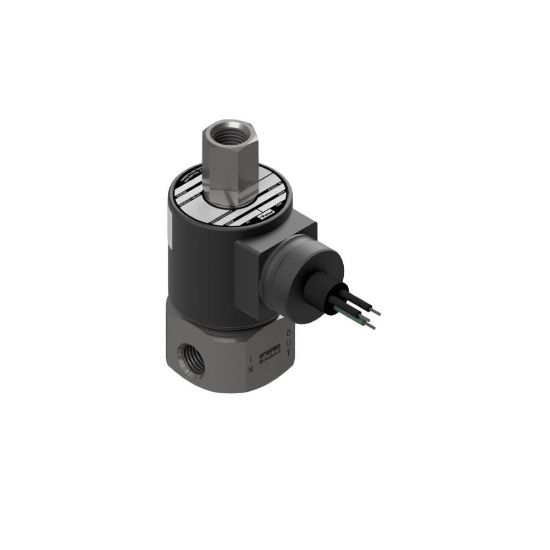

30CF04LN7B7A - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 30CF04LN7B7A

$509.10/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	NBR
Configuration	Normally Open	Voltage	12 VDC
Coil Type	Leads-only (Incl. Ground Lead)	Body Material	303 Stainless Steel
Port Size (inch)	1/4 NPT	Orifice Size (inch)	3/32
Minimum Pressure Differential (psi)	0	Function	3-Way
Maximum Operating Pressure Differential (psig)	180	Division	Fluid Control Division
Port Size	NPT 1/4 inch	Input Voltage	12.0 VDC
Actuation Type	Direct Acting	Power Consumption	10 W
Body Material	Stainless Steel 303	Seal Material	NBR
Specifications Met	CURus General Purpose	Maximum Pressure Differential	180 psig
Configuration	Normally Open (NO)	Function	3-Way
Coil Specifications Met	IP69	Maximum Fluid Temperature	185 °F
Minimum Pressure Differential	0 psi	Main Flow Coefficient	0.17 Cv
Exhaust Flow Coefficient	0.18 Cv	Installation	IOM7221
Orifice Size	3/32 inch	Preventive Maintenance Kit	7R006
Maximum Ambient Temperature	150 °F
