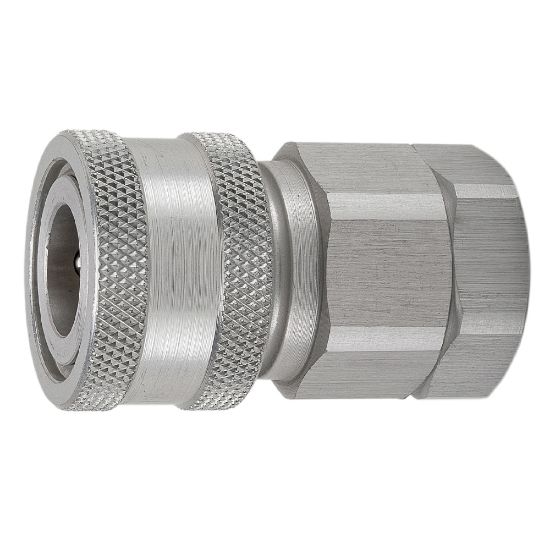

APHC4-4F - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU APHC4-4F

$26.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/4 - 18
Body Material	Aluminum	Valve Type	Unvalved
Maximum Operating Pressure	2250	Connection Type	Female NPTF
Coupling Half	Female Coupler	Body Size (inch)	1/4
Plating Type	na	Minimum Operating Temperature	-40 °F
Hex Size	0.88 inch	Division	Quick Coupling Division
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Product Type	Manual Connect	Body Material	Aluminum
Valve Type	Unvalved	Application	Hydraulic, General Purpose

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
